1.Tank material：Cylinder body Q235 carbon steel/5mm, head Q235 carbon steel/5mm
2.Beam material：Q235B/5mm
3.shape：Rectangular
1.Tank material：Cylinder body Q235 carbon steel/5mm, head Q235 carbon steel/5mm
2.Beam material：Q235B/5mm
3.shape：Rectangular
| Quotation Sheet | |||
| To:Ailsa | NO.: LSX2021623JCT DATE: 2021-6-23 |
||
| Description of goods | Q'ty/Unit | Unit Price/ShangHai//FOB | Total Amount |
| 20 ft single-layer carbon steel tank container | 1 | FOB：USD11000 | USD11000 |
| 20 ft single-layer carbon steel tank container | 1 | Ex-factory price including tax: USD10250 | USD10250 |

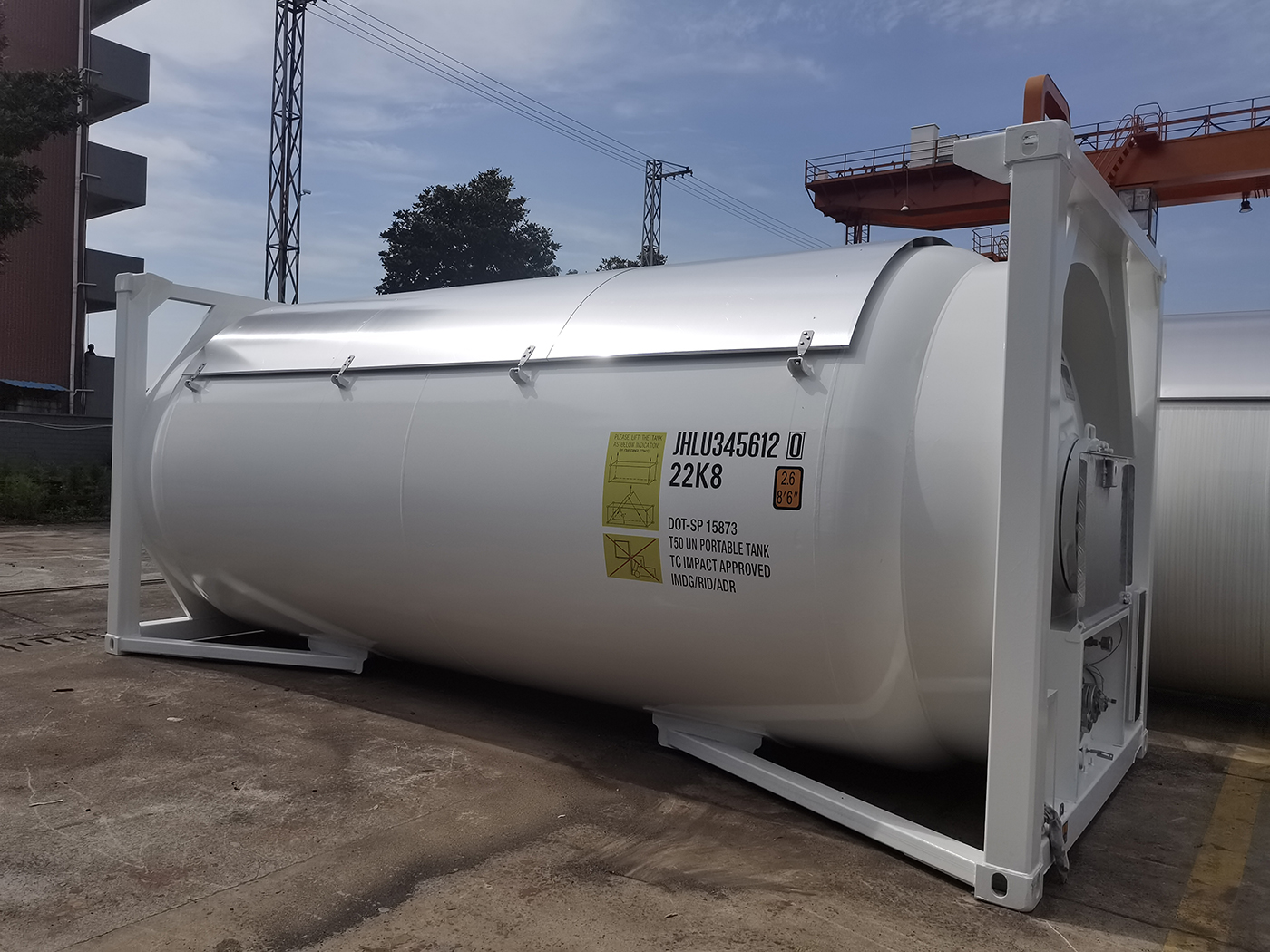

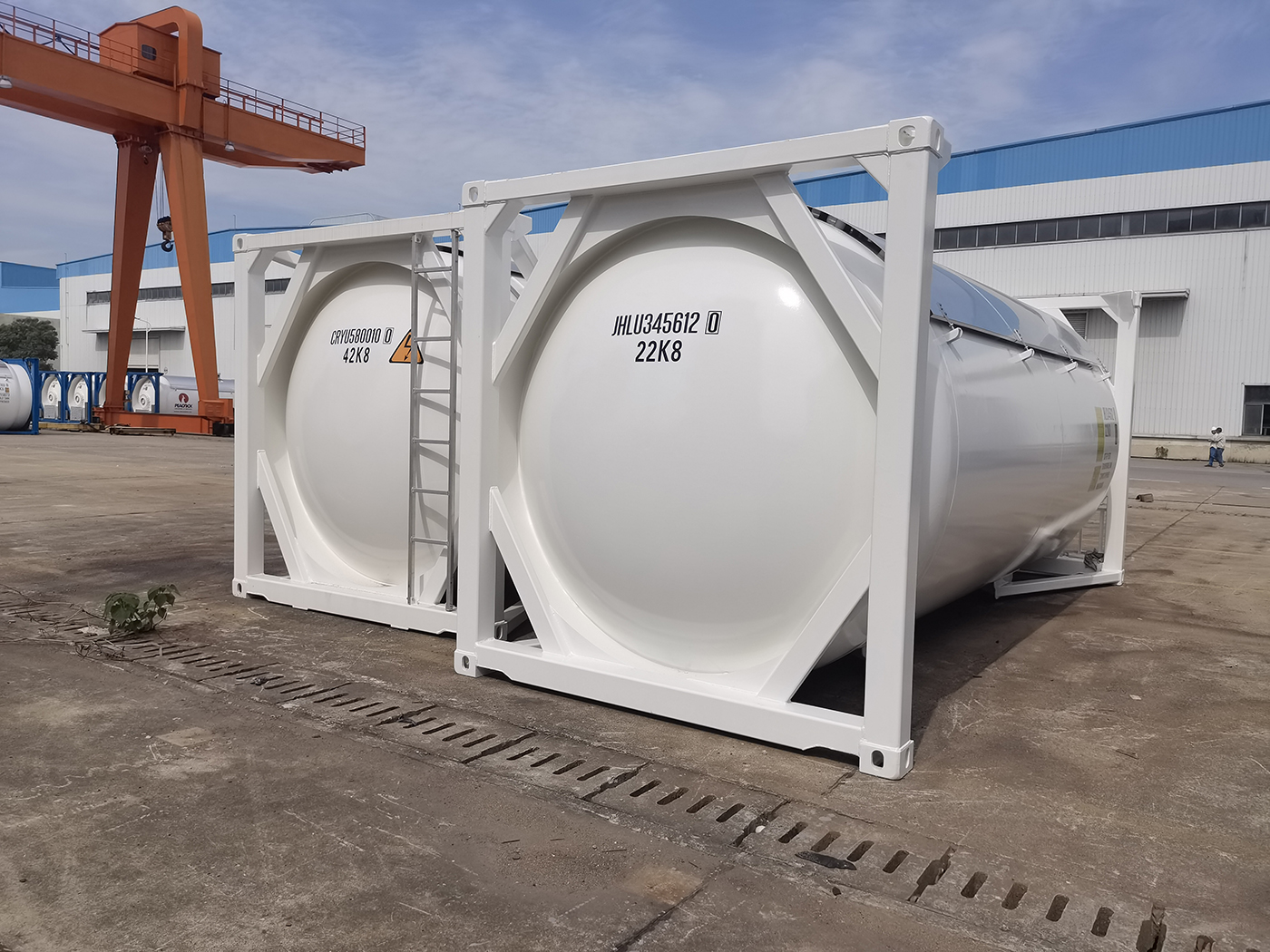

| 20FT T50 LPG Tank Container | |||
| Items | Parameter | ||
| Tank material | Cylinder body Q235 carbon steel/5mm, head Q235 carbon steel/5mm | ||
| Beam material | Q235B/5mm | ||
| shape | Rectangular | ||
| Curb weight (kg) | 4200 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Wave breaker | Q235B/4.75mm | ||
| Wave breaker hoarding | Q235B/3.5mm | ||
| Manhole | 2 | ||
| Pedestrian walkway | Have | ||
| Discharge valve | Stainless steel DN80 one | ||
| Wave breaker | 2 pieces | ||
| Climb the ladder | 1 | ||
| Ball valve | Stainless steel DN80 one | ||
| colour | According to user requirements | ||
| product name | 20FT tank container | model | JSXT |
| Transport medium | Fuel | Volume | 26 CBM |
| Dimensions (mm) | 6068*2438*2591 | Tank size (mm) | Outside: 5850*2350*2260 Inside: 5818*2318*2218 |
| Weight (kg) | 4300 | design standards | National standard |
| Production cycle | 30 | Warranty/Certificate | Have |
| Product parameters (main configuration) | |||
| Item | Specification | Remark | |
| Tank material | Cartridge Q235 carbon steel /5mm, head Q235 carbon steel /5mm | ||
| Beam material | Q235B/5mm | ||
| Shape | Rectangular | ||
| Curb weight (kg) | 4300 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Resistance wave plate | Q235B/4.75mm | ||
| Blocking board coaming | Q235B/3.5mm | ||
| breather valve | 1 / stainless steel | ||
| Test pressure | 6.0bar | ||
| Ball Valve | Stainless steel DN80 | ||
| Manhole | 2piece | ||
| Discharge valve | 2 piece/Stainless steel DN80 | ||
| Wave breaker | 2 pieces | ||
| colour | According to user requirements | ||
| other | Simple ladder, fire extinguisher, etc. | ||
| Surface treatment | Acrylic acid and alkali resistant paint, the total thickness of the paint is 150um, the color can be specified | ||
| Third party inspection | BV (France) | ||
| product name | 21FT tank container | model | JSXT |
| Transport medium | Fuel | Volume | 27 CBM |
| Dimensions (mm) | 6068*2438*2592 | Tank size (mm) | Outside: 5850*2350*2260 Inside: 5818*2318*2219 |
| Weight (kg) | -4240 | design standards | National standard |
| Production cycle | -8510 | Warranty/Certificate | Have |
| Product parameters (main configuration) | |||
| Item | Specification | Remark | |
| Tank material | Cartridge Q235 carbon steel /5mm, head Q235 carbon steel /6mm | ||
| Beam material | Q235B/6mm | ||
| Shape | Rectangular | ||
| Curb weight (kg) | 4301 | ||
| Head thickness | 5mm | ||
| Tank thickness | 5mm | ||
| Resistance wave plate | Q235B/4.75mm | ||
| Blocking board coaming | Q235B/3.5mm | ||
| breather valve | 2 / stainless steel | ||
| Test pressure | 6.1bar | ||
| Ball Valve | Stainless steel DN81 | ||
| Manhole | 3piece | ||
| Discharge valve | 3 piece/Stainless steel DN80 | ||
| Wave breaker | 3 pieces | ||
| colour | According to user requirements | ||
| other | Simple ladder, fire extinguisher, etc. | ||
| Surface treatment | Acrylic acid and alkali resistant paint, the total thickness of the paint is 151um, the color can be specified | ||
| Third party inspection | BV (France) | ||
