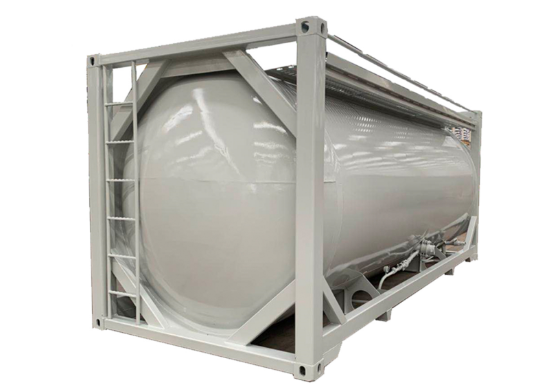

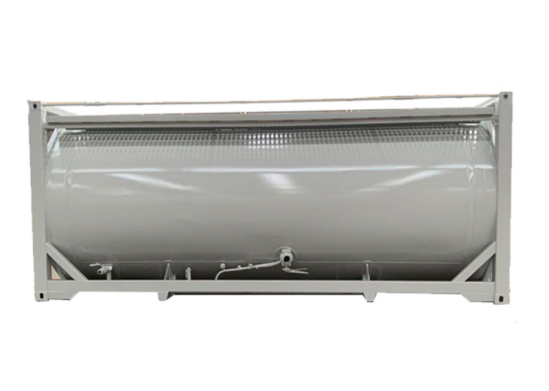

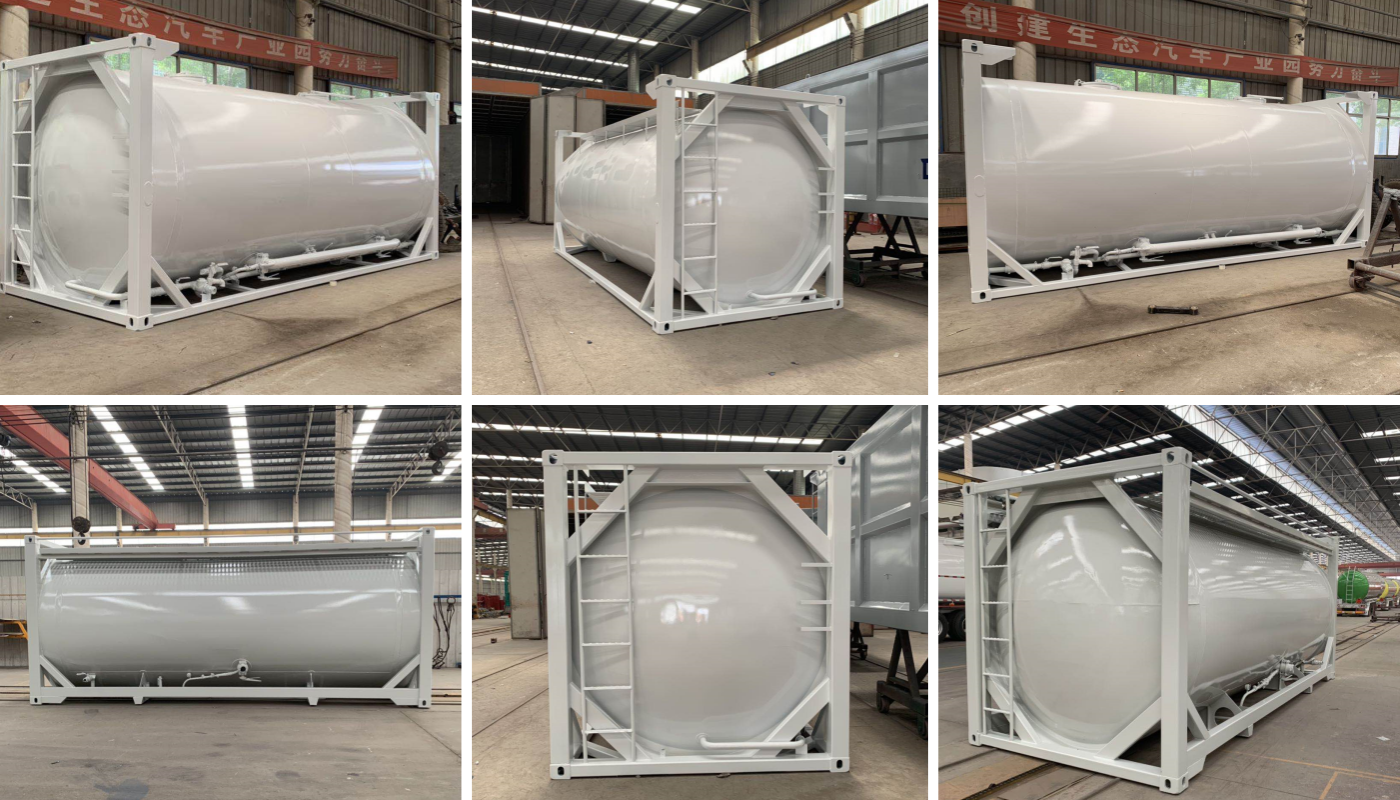

25m³ Powder Tank Container，Equipped with a top filling port and a bottom discharge valve, the powder tank allows for quick and efficient loading and unloading. Its design includes safety features such as pressure relief valves and level indicators, ensuring safe operation during transit and storage. Standardized for intermodal shipping, the 25m³ powder tank container can be easily transported by truck, rail, or vessel, meeting international shipping standards.
Advantages:
High Capacity: With a capacity of 25m³, it efficiently accommodates bulk quantities, reducing transport costs and the number of trips required.
Durability: Made from robust materials, the container is resistant to corrosion and wear, ensuring a long service life.
Efficient Loading and Unloading: The top fill and bottom discharge design streamline logistics operations, improving overall efficiency.
Safety Features: Equipped with pressure relief and safety valves, it minimizes risks associated with the transport of powdered materials.
Versatile Application: Ideal for transporting various powdered materials, the container serves multiple industries, including construction, food processing, and chemicals.
Space-Efficient Design: Stackable in storage, the container optimizes space while maintaining accessibility.
Compliant with Regulations: Designed in accordance with international safety and shipping standards, ensuring a hassle-free transportation process.
| code and regulatinon | AS 1210-2010 , CSC |
| M.P.G.M. | 34000 KG (74,955 lbs) |
| tare mass (nominal) | 4000 ±3% kg (8818 lbs) |
| payload | 30000kg (66137lbs) |
| tank material & thickness | shell Q235R 3MM, dished head : Q345R 6mm |
| corrosion allowance | 0.6mm (shell & dished head) |
| tank size (internal) | 2484*DIA6016 |
| vessel deisgn temperature | -20~ +70℃ （-4.F~ +158.F） |
| radiogrphy | shell: none; dished head :100% |
| in-let hole opening | 500mm & 100mm |
| out-let hole opening | 100 mm |
| internal cubic capacity | 27.2m3 / 970ft3 |
| effective capacity | 25.2m3 /890ft3 |
| design pressure | 0.165 Mpa |
| safety valve set pressure | 0.165 Mpa |
| max allowable working pressure | 0.165 Mpa |
| test pressure | vessel hydrostatic test 0.24Mpa |
| cargo loading | cement |
| desig code & class | AS1210-3 |
| Certificate | LR |
| AS4343 Hazard level | B |
