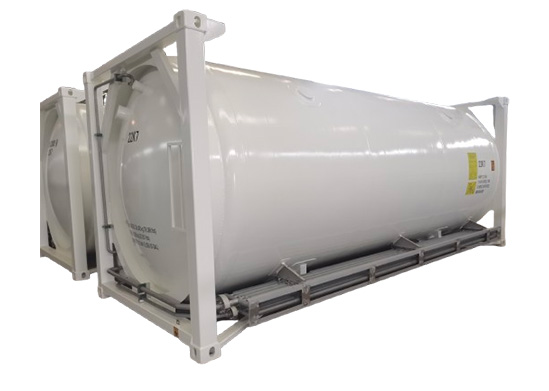

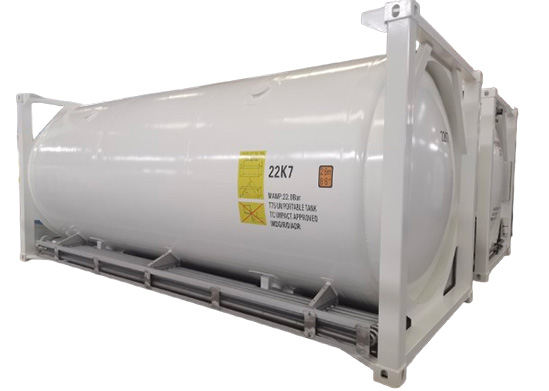

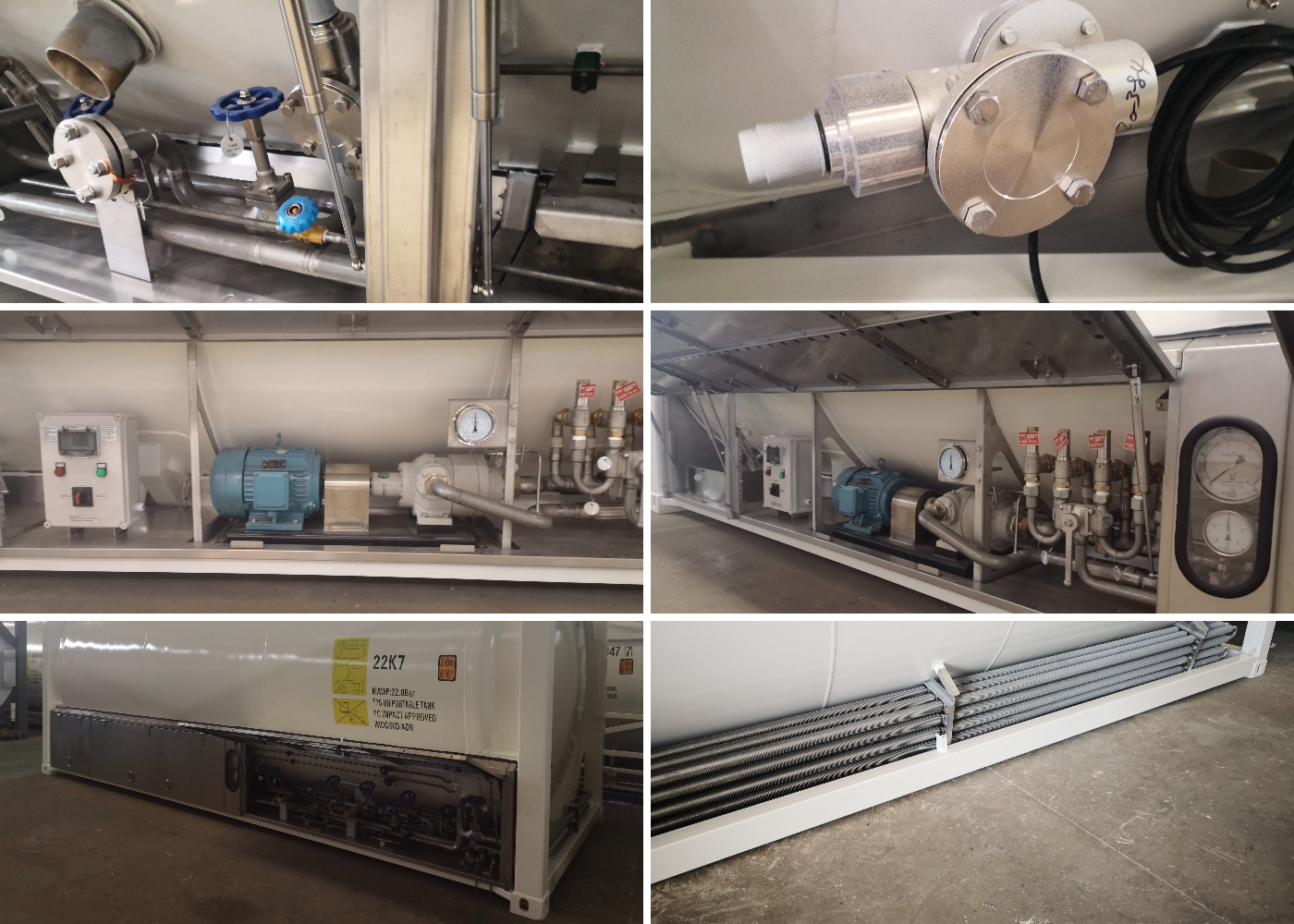

Introducing our 20ft T75 tank container, expertly designed for the safe and efficient transport of refrigerated liquids and gases. This high-quality container features a robust insulation system, ensuring the integrity of temperature-sensitive materials during transit. Equipped with a state-of-the-art pump, this unit facilitates smooth loading and unloading processes, reducing downtime and enhancing operational efficiency.
Constructed from durable materials and with CCS, LR and BV approvals, the T75 tank container meets international standards for safety. Ideal for industrial gases, hospitals, pharmaceuticals and other industries, this versatile solution meets a wide range of logistical needs.
| Main material Cover | inside tank SA-240M 304 |
| Main material Cover | outside tank Q345R |
| Tank Shape | Column Shape,Horizontal |
| Tare weight(kg) | 8700 |
| Gross mass(kg) | 36000 |
| Filling ratio | 95% /72.4% |
| Full capacity | 21000L |
| Design Pressure | 22Bar |
| Baffles of the inner vessel | Two transvers baffles |
| Design temperature(ºC) | -196 to 50 |
| Type of insulation | High vacuum multi-layer |
| Valve types for cryogenic tanks | cryogenic valves |
| Safety Valve | DN25 PN2.5 DAH-25A1 |
| Vaporator | DN25 |
| Top inlet pipe | DN40 |
| Bottom inlet/outlet pipe | DN40 |
| Reflux tube | DN40 |
| Liquid level gas phase tube | DN10 |
| Liquid level liquid phase tube | DN10 |
| Monitoring tube | DN10 |
| Overall Size(Frame)/L*W*H/mm | 6058*2438*2591 |
| ISO-cornercastings | 20'x8'x8'6" ISO dimensions |
