Advantages
Safety First: Equipped with advanced safety features, including pressure relief valves and leak detection systems, to minimize risks during transportation.
Durability: Built to withstand harsh conditions, our containers are resistant to corrosion and extreme temperatures, ensuring long-lasting performance.
Versatility: Suitable for a wide range of acids, making it an ideal choice for various industries including chemical manufacturing and distribution.
Cost-Effective: Maximize efficiency with a spacious design that allows for bulk transport, reducing logistical costs.
Easy Handling: Designed for compatibility with standard handling equipment, simplifying loading and unloading processes.
| Tank specifications | 30 feet |
| Shipping media | Concentrated nitric acid |
| total tank capacity | 20000L, 1 warehouse |
| Tank material | Aluminum 1060/16.0 mm |
| Head material | Aluminum 1060/16.0 mm |
| anti-wave board | Aluminum 1060/12.0 mm |

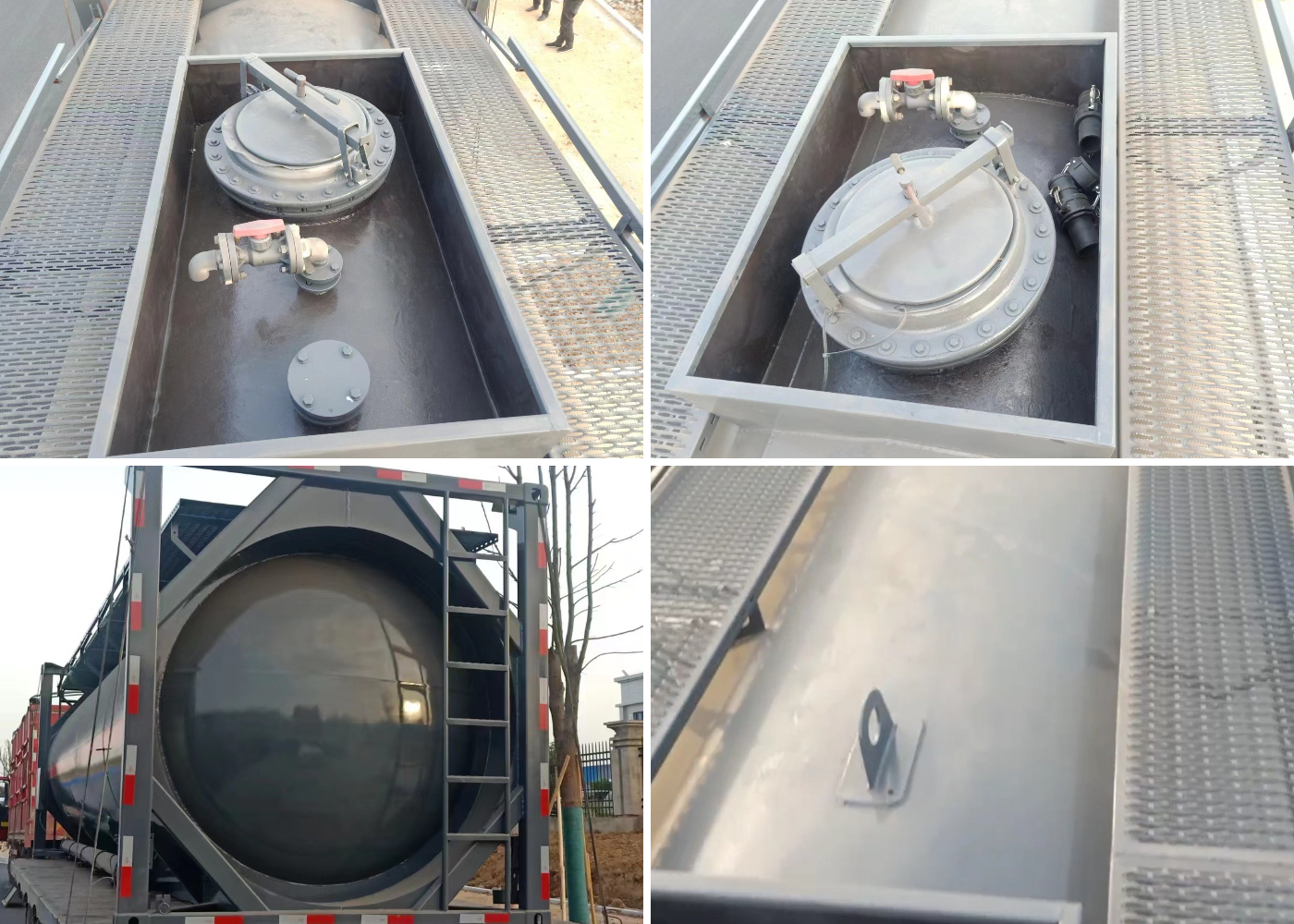

| manhole cover | Install 2 sets of pure aluminum manhole covers on the top of the tank silo |
| Discharge valve | DN80 flange blind plate at the bottom of the head, equipped with 1 C4 angle valve (DN80) + C4 ball valve (DN65) + discharge port and plugging cover |
| Breather valve | 1 stainless steel 316L vent valve on the top of the tank |
| Yang end | Discharge stainless steel 316L male end 1 piece |
| Discharge pipe | PVC transparent pipe DN65 1 piece |
| Top spare discharge port | DN65 flange blind plate on the top of the tank, 1 siphon pipe installed inside the tank |
| Lock seat | Steel casting 45# |
| Container column | carbon steel square tube |
| Container horizontal rack | carbon steel square tube |
| Walking platform outside the tank roof | glass mesh |
| Dimensions | 9125*2438*2438/2591 |
| tank paint | 2 coats of primer, 2 coats of topcoat, dark gray anti-corrosion paint |
| container frame paint | Gray anticorrosive paint |
