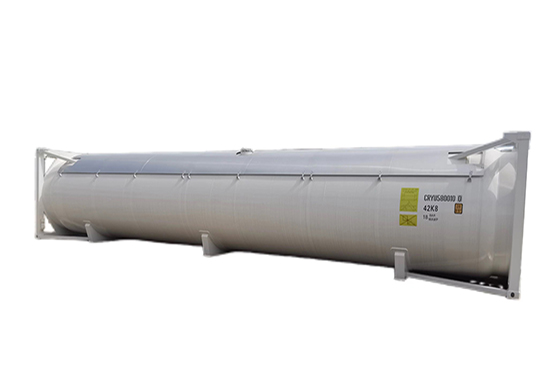

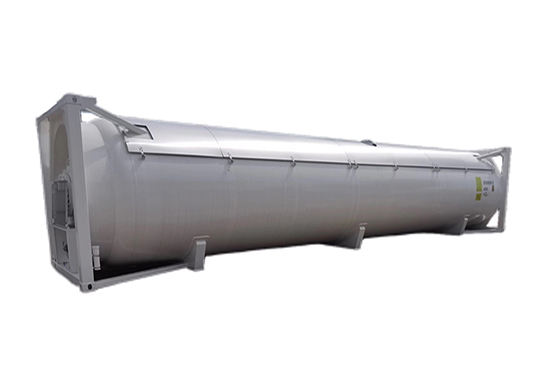

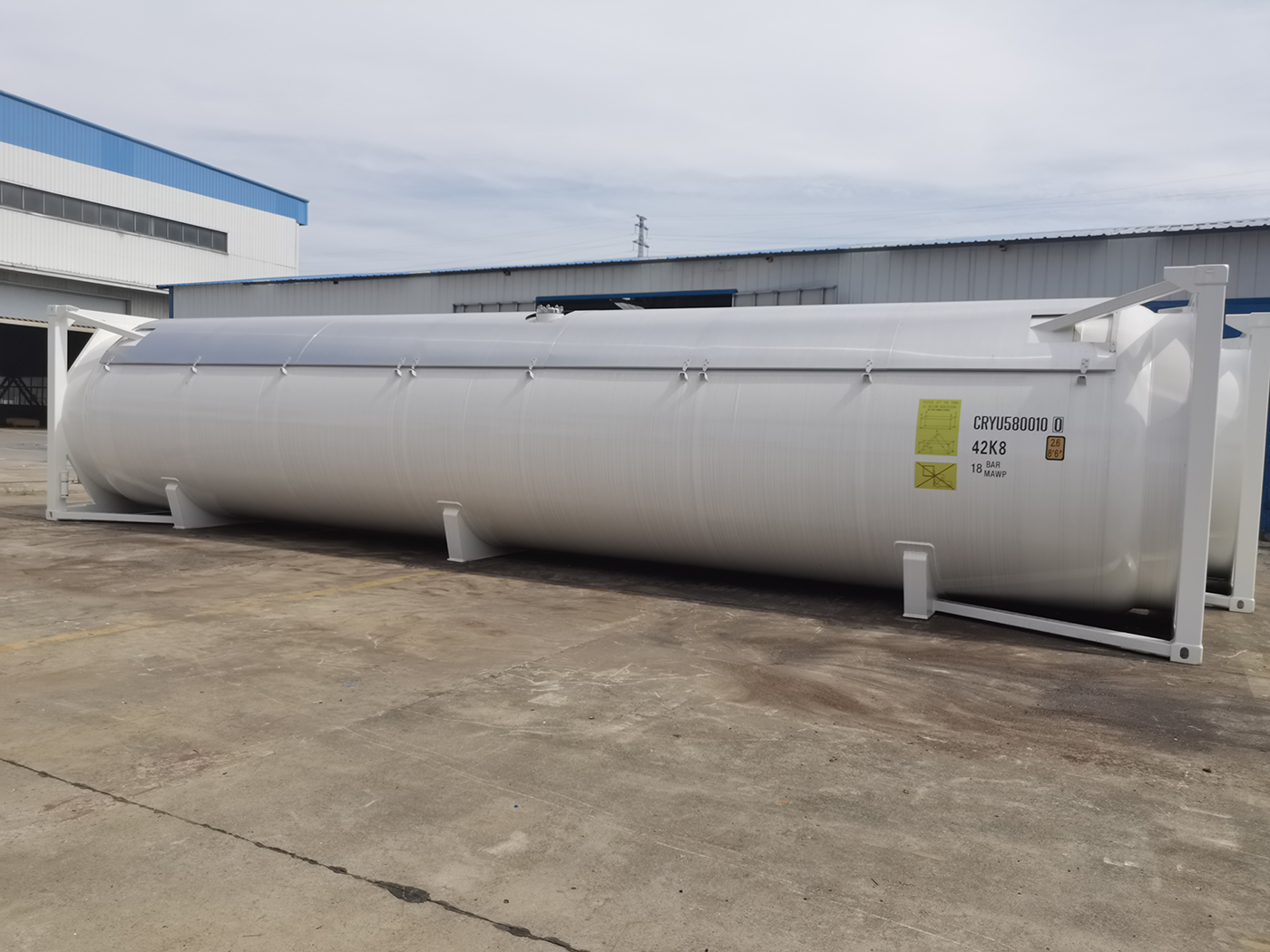

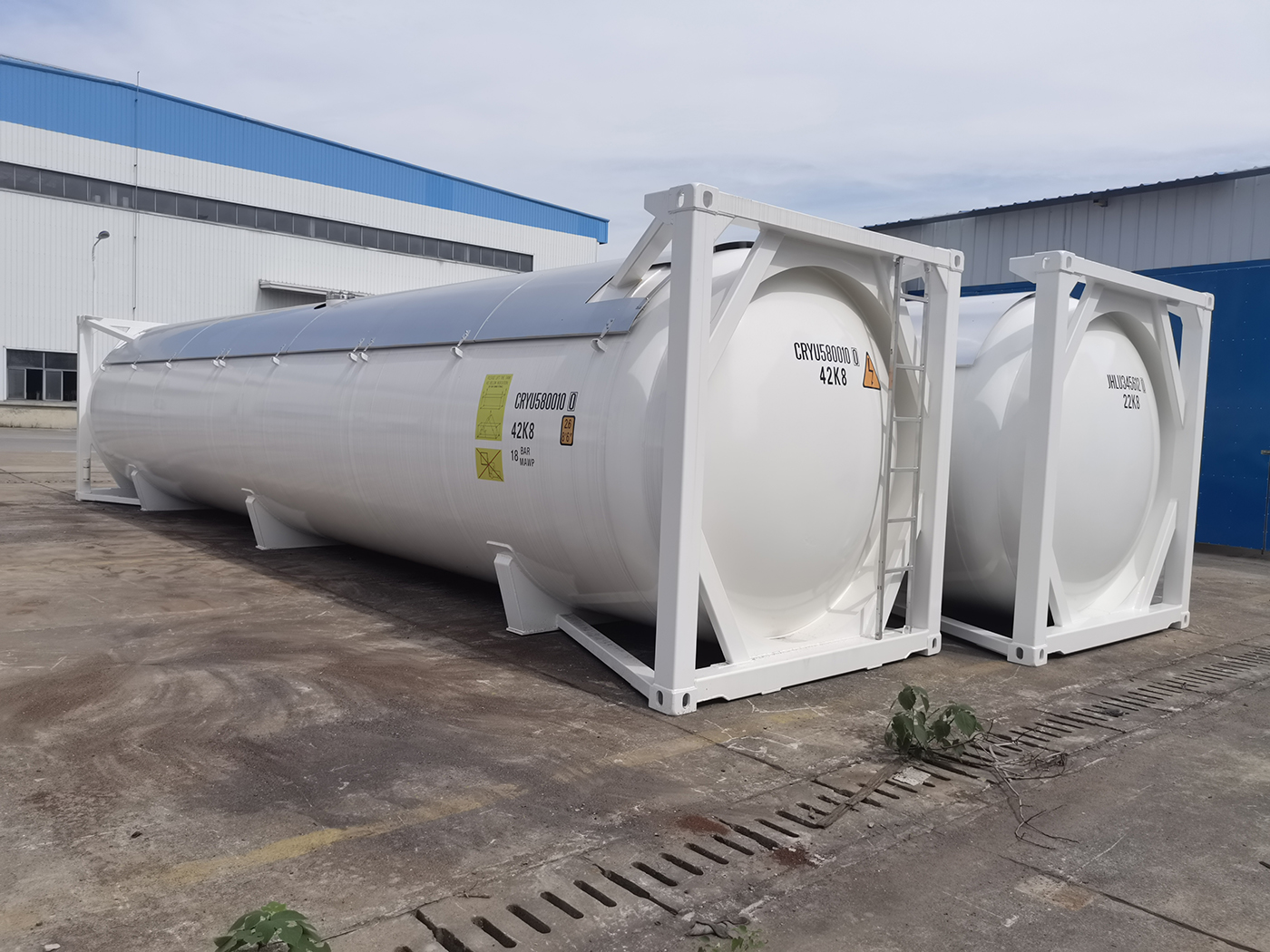

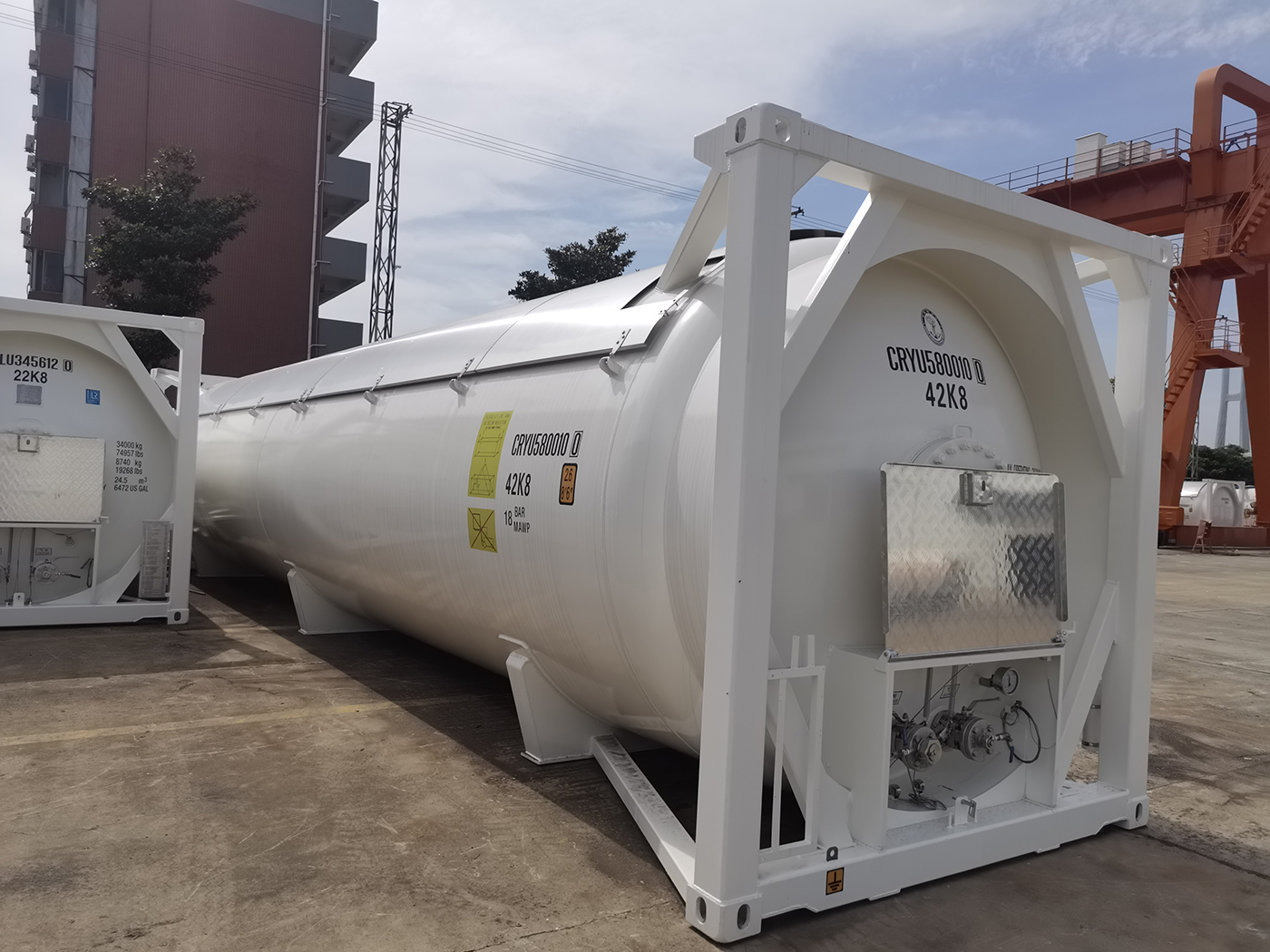

The 40-foot T50 LPG tank container is designed for the safe and efficient transportation of liquefied petroleum gas (LPG). One of its primary advantages is its robust construction, utilizing high-strength carbon steel to withstand high pressure and extreme environmental conditions.
The 40-foot T50 LPG tank container is designed for the safe and efficient transportation of liquefied petroleum gas (LPG). One of its primary advantages is its robust construction, utilizing high-strength carbon steel to withstand high pressure and extreme environmental condition.
This T50 tank container equipped with advanced safety features, such as pressure relief valves and advanced monitoring systems, this LPG tank container ensures compliance with international safety standards. Its large capacity optimizes logistics efficiency, reducing transportation costs per unit.
Additionally, the 40-foot design allows for easy handling and compatibility with various transport modes, including ships, trucks, and trains. with BV, CCS, LR certificate.
| UN tank instruction | T50 |
| Tare(kg) | 13000 |
| M.P.L.M.of LPG(kg) | 21760 |
| Max gross(kg) | 36000 |

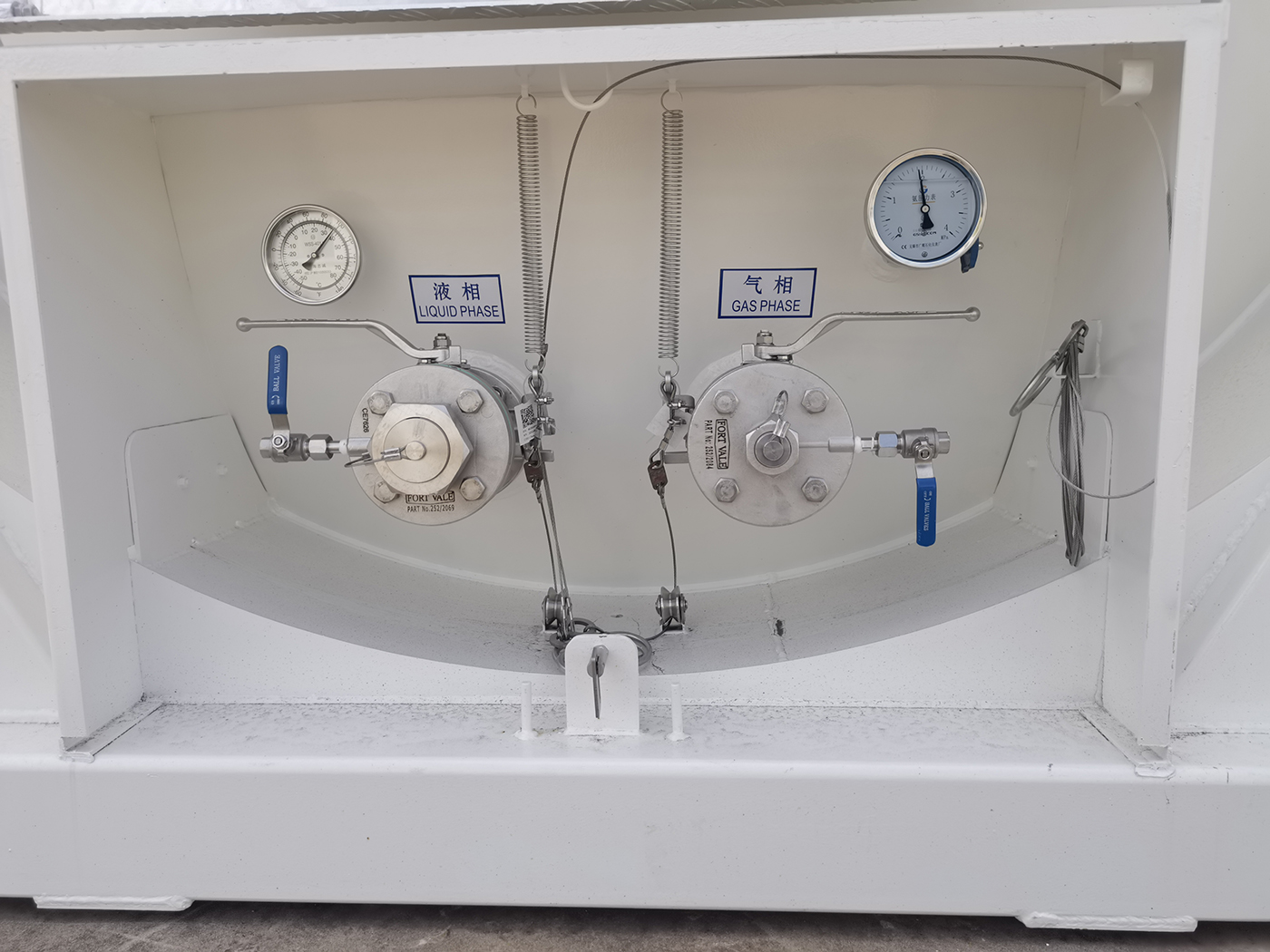

| Emergency shut-off | Type：Manual control，DN (Liquid/Gas)：DN50/DN50 |
| Safety valve | Type：Spring full-lift， DN-PN：DN80-PN40bar， Set pressure(MPa)：1.89 |
| Pressure gauge | Dial diameter(mm)：φ100， Accuracy grade：1.6，Range instruction(MPa)：0~4 |
| Goods | LPG |
| Use environment temperature(℃) | -40/+50 |
| Design temperature(℃) | -40/+50 |
| Operating pressure(MPa) | 1.8 |
| Design pressure(MPa) | 1.8 |
| Volume(m3) | 51.8 |
| Filling weight per volume(kg/L) | 0.42 |
| Material | Q345R(hot rolled)-GB/T713-2014 |
| Forgings | 16MnⅢ(normalizing)-NB/T47008-2017 |
| Insulation methods | Sun-shield |
| Vessel size (O.D.XL) | φ2413x12023 |
