The total assets of the factory are USD 120million. Our factory occupies a total area of 421 acres, and the company is equipped with more than 700 sets of equipment. French plasma/TIG welding machine, Swedish plate bending machine, fully automatic X -ray real-time imaging flaw detection and inspection system, leading the global tank container manufacturing production line.
Transportation medium: sewage, this product is a high vacuum sewage suction tank
Unloading method: loading and unloading
1: The total assets of the factory are USD 120million. Our factory occupies a total area of 421 acres, and the company is equipped with more than 700 sets of equipment. French plasma/TIG welding machine, Swedish plate bending machine, fully automatic X -ray real-time imaging flaw detection and inspection system, leading the global tank container manufacturing production line.
2: Our team is more than 800 people, including more than 150 senior technicians, advanced production technology, strong manufacturing capabilities, and a perfect QA/QC quality control system.
3: We have a strong sales team. Our sales staff have been trained in professional skills for more than one year before taking up the job. They have a deep understanding of the tank container product structure and can provide users with high-quality and efficient services and rationalized product solutions.
4: main products:
ISO tank container (liquid tank container, solid tank container, gas tank container), container transportation semi-trailer, etc., and other logistics transportation equipment. Size, color and others can be changed and customized according to your needs.
product Overview | |||

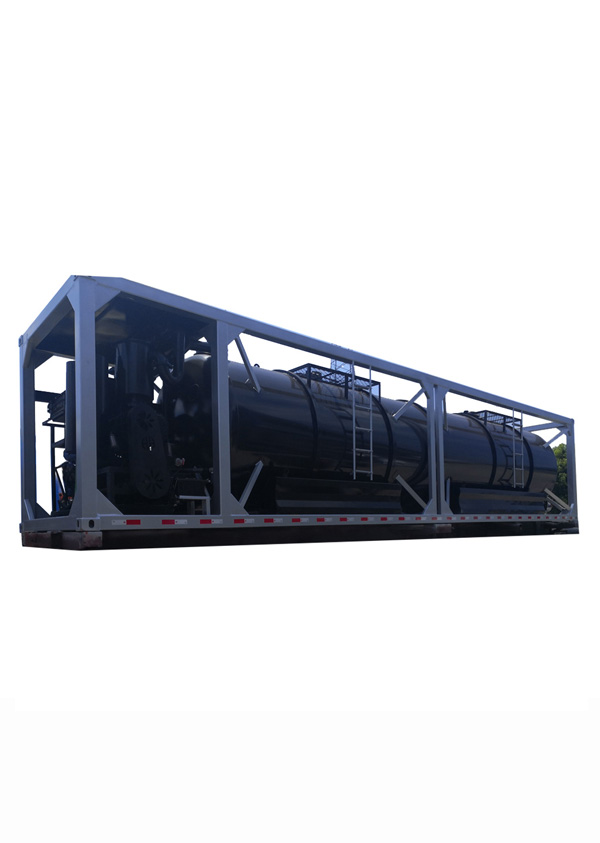

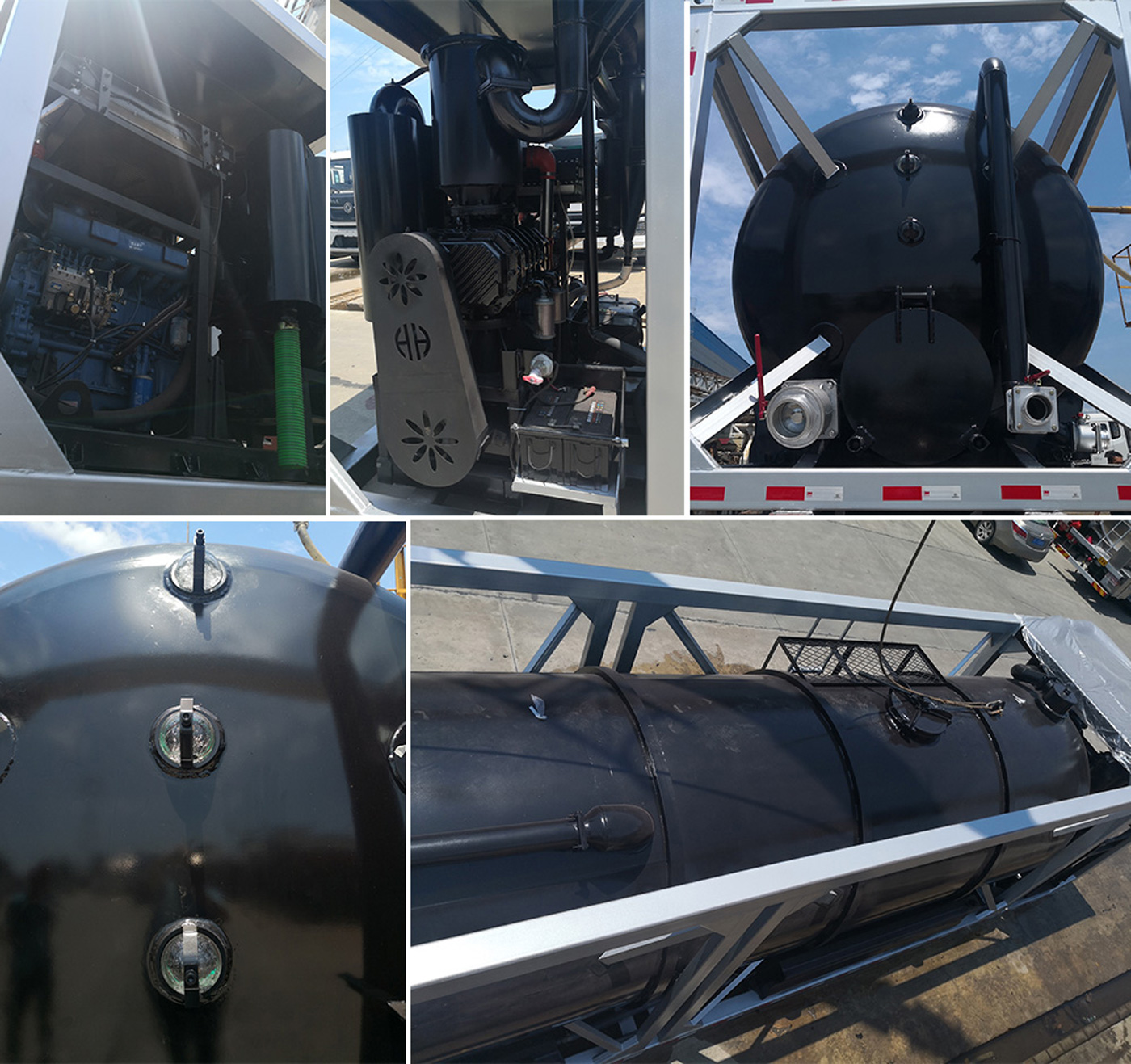

product name | 36 cubic sewage suction tank | model | LSXC9400GXW |
Transport medium | Liquid dirt | Volume | 36 cubic |
Overall dimensions(mm) | 12192*2438*2591 | Tank size(mm) | 10400*diameter 2100 |
Weight (kg) | 12300 | Load (kg) | 36000 |
Production cycle | 30 days | Warranty/Certificate | Have |
Product parameters (main configuration) | |||
Item | Specification | Remark | |
Tank material | 304L/8mm | ||
Beam material | Q235/8mm | ||
shape | Round | ||
Tank volume | 36 cubic | ||
Tank material | Head 304L/8mm, cylinder 304L/8mm | ||
Vacuum pump | Water ring vacuum pump | ||
Ultimate vacuum | 0.093Mpa | ||
Rotating speed | 740r/min | ||
Maximum pumping speed | 42 cubic meters/min | ||
power | 90KW | ||
caliber | Import: DN150, Export: DN150 | ||
Water consumption | 100-150L/min | ||
Total pump weight | 460KG | ||
Auxiliary engine | WD12.220 | With one-key start | |
Engine brand | Weichai | ||
Fuel type | diesel fuel |
