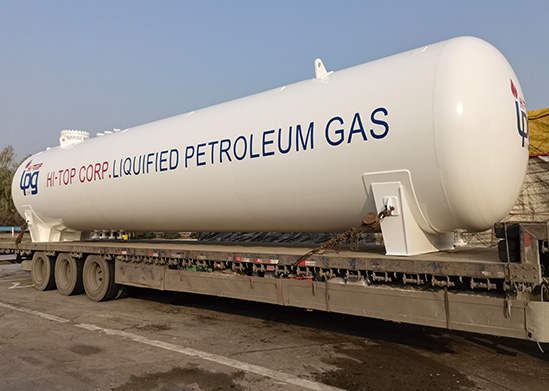

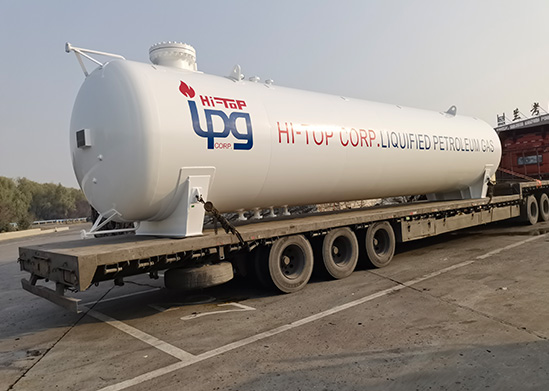

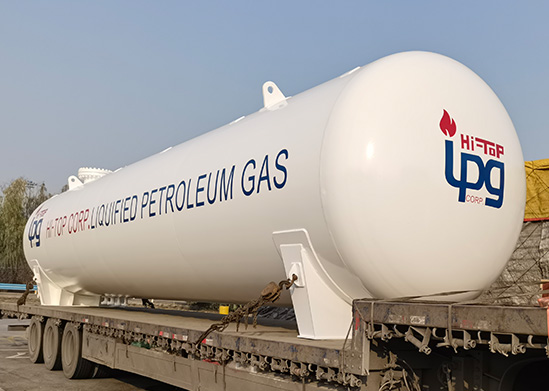

LPG Storage Tank

Send Email Inquiry Now

Product Introduction

The gas storage tank refers to the equipment specially used to store gas, and at the same time, it plays the role of stabilizing the system pressure. According to the pressure of the gas storage tank, it can be divided into high-pressure gas storage tank, low-pressure gas storage tank, and normal pressure gas storage tank. According to the material of the gas storage tank, it can be divided into: carbon steel gas storage tank, low alloy steel gas storage tank, stainless steel gas storage tank. Gas storage tanks (pressure vessels) are generally composed of parts and components such as cylinders, heads, flanges, nozzles, sealing elements and supports. In addition, it is also equipped with safety devices, meters and internal parts for different production processes.

PRODUCT NAME	LPG STORAGE TANK
BUILT FOR
ITEM NUMBER		DESIGN CODE	ASME BPVC W.1-2019
SERVICE FLUID	LPG	CORROSION ALLOWANCE	mm
WATER CAPACITY	60m3	VESSEL NET WEIGHT	16600KG
OVERALL LENGTH	13001mm	OUTSIDE DIAMETER	2506mm
SHELL MATERIAL	SA-516 GR.70	HEAD MATERIAL	SA-516 GR.70
SHELL THICKNESS	18mm	HEAD THICKNESS	18mm
HEAT TREATMENT	PWHT	NDT	RT
TEST PRESSURE	2.25MPa	EXTERNAL SURFACE AREA	108.27m2

CERTIFIED BY
JINGMEN HONGTU SPECIAL AIRCRAFT MANUFACTURINGCOLTD
MAWP	1.724MPa	AT	50℃
MDMT	‘-20℃	AT	0.7MPa
MFR.S/N	W51110
YEAR BUILT	2021

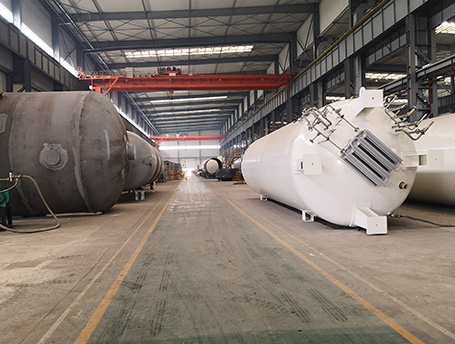

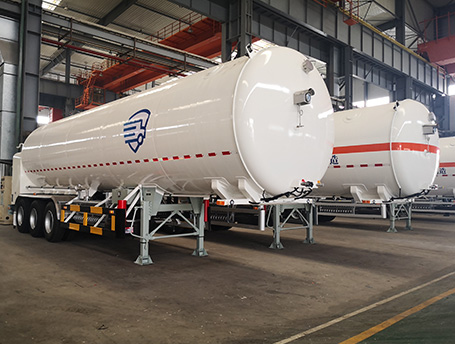

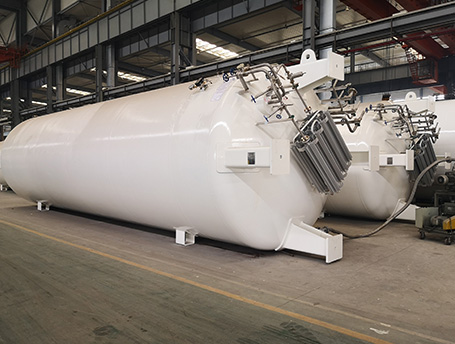

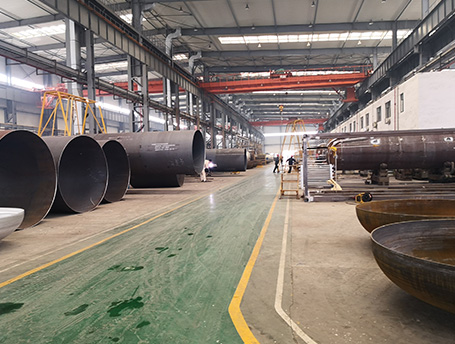

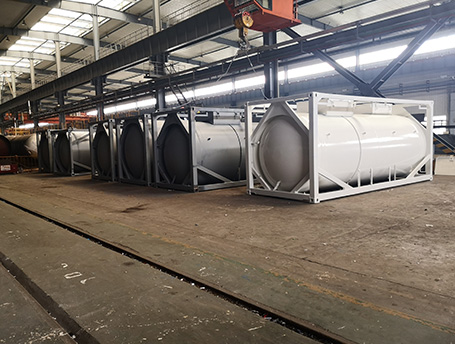

Factory Tour
