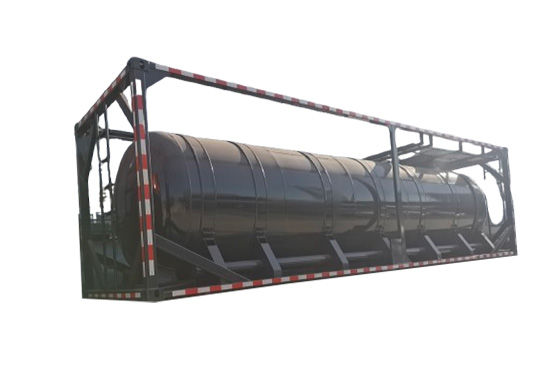

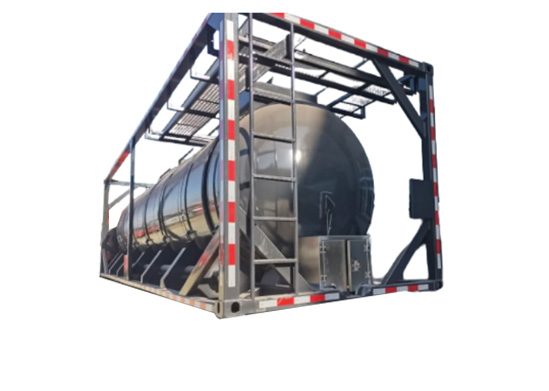

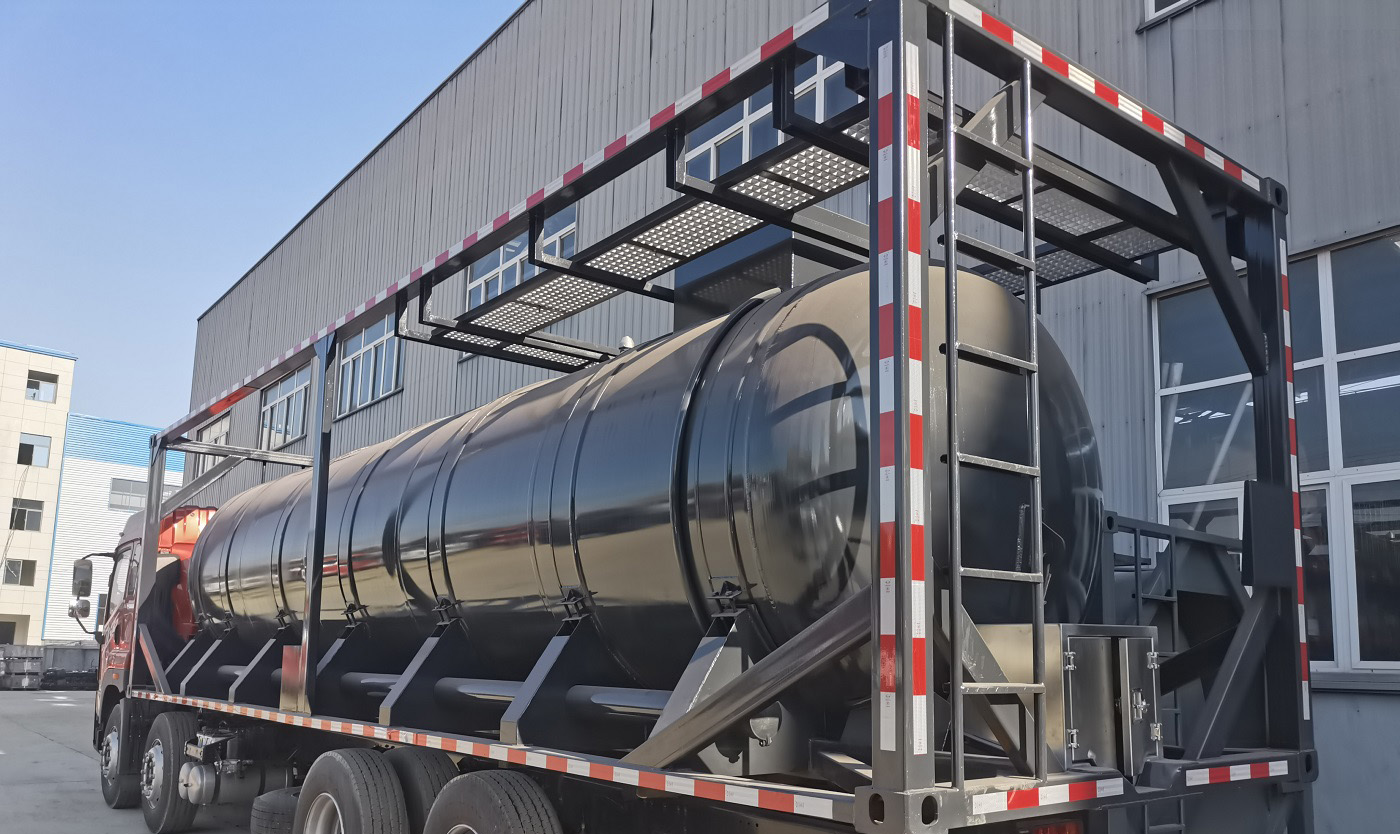

The pure aluminum concentrated nitric acid tank container is specifically engineered for the safe storage and transportation of highly corrosive liquids. Constructed from high-purity aluminum, this tank container offers exceptional resistance to corrosion and chemical reaction, making it ideal for handling concentrated nitric acid. Its lightweight design not only ensures easy maneuverability but also helps reduce overall transportation costs.
Advantages:
Corrosion Resistance: The pure aluminum construction provides superior resistance to nitric acid, extending the container’s lifespan.
Lightweight Design: Reduces shipping costs and enhances handling efficiency without sacrificing strength.
Safety Features: Equipped with advanced safety mechanisms, ensuring secure transport and minimizing risks.
Seamless Structure: Minimizes leak risks, protecting the environment and ensuring content integrity.
| Tank material | Aluminum 1060/16.0 mm |
| Head material | Aluminum 1060/16.0 mm |
| Wave-proof plate | Aluminum 1060/12.0 mm |
| Manhole cover | 2 sets of pure aluminum manhole covers installed on the tank silo roof |
| External dimensions | 9125*2438*2438/2591 |
| Total capacity and compartments of the tank | The total capacity of the tank is 20,000L, through the warehouse |
| Shipping medium | Concentrated nitric acid |
| Discharge valve | DN80 flange blind plate at the bottom of the head, equipped with 1 C4 angle valve (DN80) + C4 ball valve (DN65) + discharge port and plug cover |
| Ventilation valve | 1 stainless steel 316L vent valve on the tank top |
| Discharge pipe | 1 PVC transparent pipe DN65 |
| Top spare discharge port | DN65 flange blind plate on the tank top, 1 siphon tube installed in the tank |
| Tank top external platform | Glass mesh |
| Tank paint | 2 primers, 2 topcoats, dark gray anti-corrosion paint |
