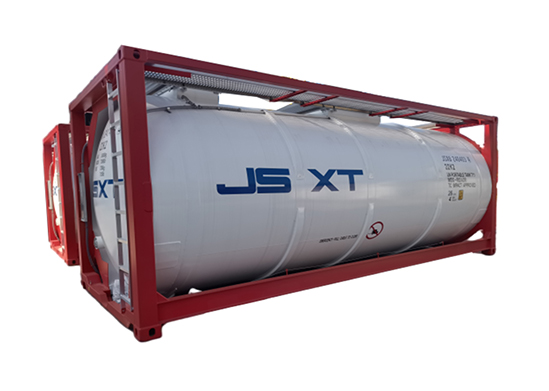

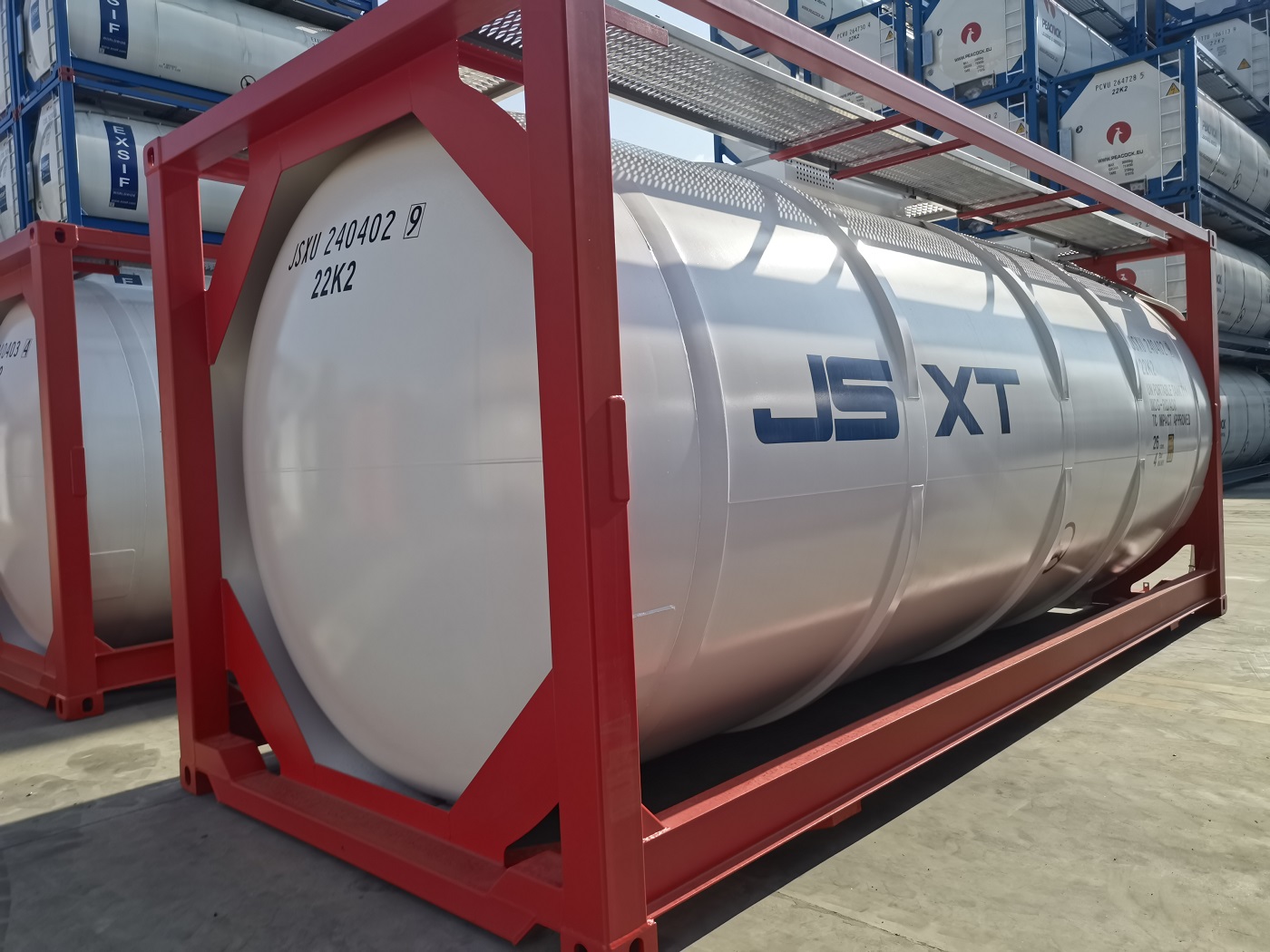

The 20ft T11 ISO tank container, designed without insulation, offers several distinct advantages. Its construction typically includes high-grade stainless steel 316L, ensuring durability and resistance to external damage.
The T11 ISO tank absence of insulation reduces the overall weight, making it more efficient for transportation. This design is ideal for transporting non-temperature-sensitive liquids, optimizing loading capacity. Additionally, the T11's smooth interior surfaces facilitate easy cleaning and maintenance, ensuring compliance with hygiene standards. Its versatile applications range from chemicals to food-grade liquids, making it a robust choice for various industries. Overall, the T11 tank container provides efficiency, reliability, and practical use for liquid transport.
| DESIGN CODE: TANK | ASME SECT VIII DIV. 1 IMDG T11 49CFR ADR/RID |
| FRAME | CSC,UIC, TIR, ISO, TC. US DOT |
| AMBIENT TEMPERATURE RANGE | -20°CTO+65°C |
| VESSEL DESIGN TEMPERATURE | -40°CTO+130°C |
| DESIGN PRESSURE | TANK:4 BAR |
| TEST PRESSURE | TANK:6 BAR |
| EXTERNAL DESIGN PRESSURE | 0.41 BAR |
| MATERIALS: FRAME | GB/T1591-Q355D or SPA-H |
| SHELL AND ENDS | SANS 50028-7 Wnr 14402/14404 (C<0.03) |
| SHELL NOMINAL THICKNESS | 4.4 mm |
| HEAD NOMINAL THICKNESS | 4.5 mm AFTER FORMING |
| CORROSION ALLOWANCE | 0.2 mm |
| RADIOGRAPHY SHELL | SPOT |
| ENDS | 100% |
| NOMINAL CAPACITY | 26.000 LITRES NOMINAL |
| MAX GROSS WEIGHT | 36,000KG |
| TARE WEIGHT (EST) | 3450KG±3% |
| STACKING CAPABILITY | 216,000 KG |
| MAX PAYLOAD | 32,550KG |
| PRODUCT LIST | AS LISTED UNDER UN PORTABLE TANK |
| CONTAINER SIZE | 6058 mmx2438mmx2591 mm |
| INSULATION | NONE |
| CLADDING | NONE |
| FRAME FINISH | SHOT BLAST SA2.5:3COAT PAINT SYSTEM |
| INSPECTION AUTHORITY | LR |
