1.ASME standard, with LR certificate 2.with heating tube and insulation layer (steam heating) steam coil or outer jacket coil. Optional rock wool or polyurethane foam insulation
1.ASME standard, with LR certificate
2.with heating tube and insulation layer (steam heating) steam coil or outer jacket coil. Optional rock wool or polyurethane foam insulation
3.Thermometer: -50° C to +200 ° C with protection bar
4.Food grade 316 stainless steel, long life transportation and storage of a variety of chemical liquids
5.heating mode: generally steam heating and electric heating
| Quotation Sheet | |||
| To:Mr. Emre TOKEL | NO.: LSXC20220215JSXT DATE: 2023-02-15 |
||
| Description of goods | Q'ty/Unit | Unit Price/China FOB | Total Amount |
| T11 Tank Container | 5 | FOB:23500USD | 117500USD |
| 10 | FOB:23300USD | 233000USD | |
| 30 | FOB:23000USD | 690000USD | |
| 50 | FOB:22700USD | 1135000USD | |

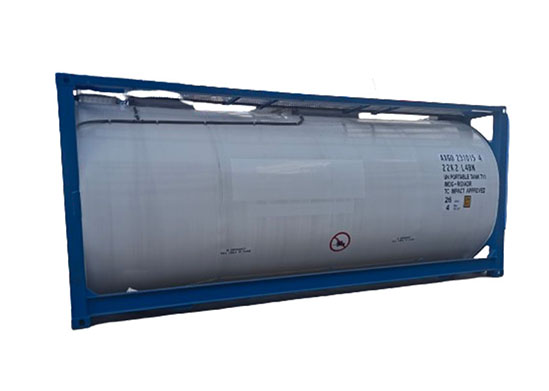

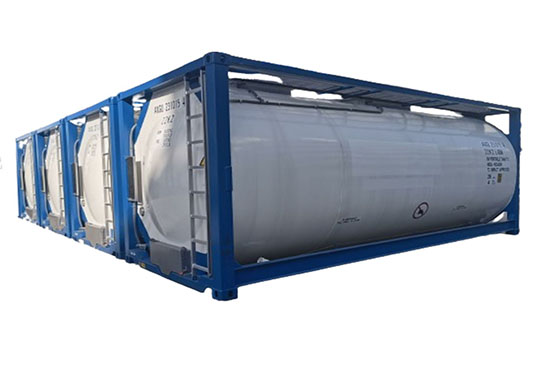

| International Standard T11 Stainless Steel Tank Container | |||
| Items | Parameter | ||
| DESIGN CODE: TANK | ASME SECT VIII DIV. 1 IMDG T1149CFR ADR/RID | ||
| FRAME | CSC,UIC, TIR, ISO, TC. | ||
| AMBIENT TEMPERATURE RANGE | -20°CTO+65°C | ||
| VESSEL DESIGN TEMPERATURE | -40°CTO+130°C | ||
| DESIGN PRESSURE | TANK:4 BAR HEATING COILS:4 BAR | ||
| TEST PRESSURE | TANK:6 BAR HEATING COILS:6 BAR | ||
| EXTERNAL DESIGN PRESSURE | 0.41 BAR | ||
| MATERIALS: FRAME | GB/T1591-0345Dor SPA-H | ||
| SHELL AND ENDS | SANS 50028-7 Wnr 14402/14404 | ||
| SHELL NOMINAL THICKNESS | 4.4 mm | ||
| HEAD NOMINAL THICKNESS | 4.5 mm AFTER FORMING | ||
| CORROSION ALLOWANCE | 0.2 mm | ||
| RADIOGRAPHY SHELL | SPOT | ||
| ENDS | 100% | ||
| NOMINAL CAPACITY | 25.000LITRES NOMINAL | ||
| MAX GROSS WEIGHT | 36,000KG | ||
| TARE WEIGHT (EST) | 3,700KG±3% | ||
| STACKING CAPABILITY | 216,000 KG | ||
| MAX PAYLOAD | 32,300KG | ||
| PRODUCT LIST | AS LISTED UNDER UN PORTABLE TANK T11 | ||
| CONTAINER SIZE | 6058 mmx2438mmx2591 mm | ||
| INSULATION | ROCK WOOL | ||
| CLADDING | GRP | ||
| FRAME FINISH | SHOT BLAST SA2.5:3COAT PAINT SYSTEM | ||
| INSPECTION AUTHORITY | BV or LR | ||

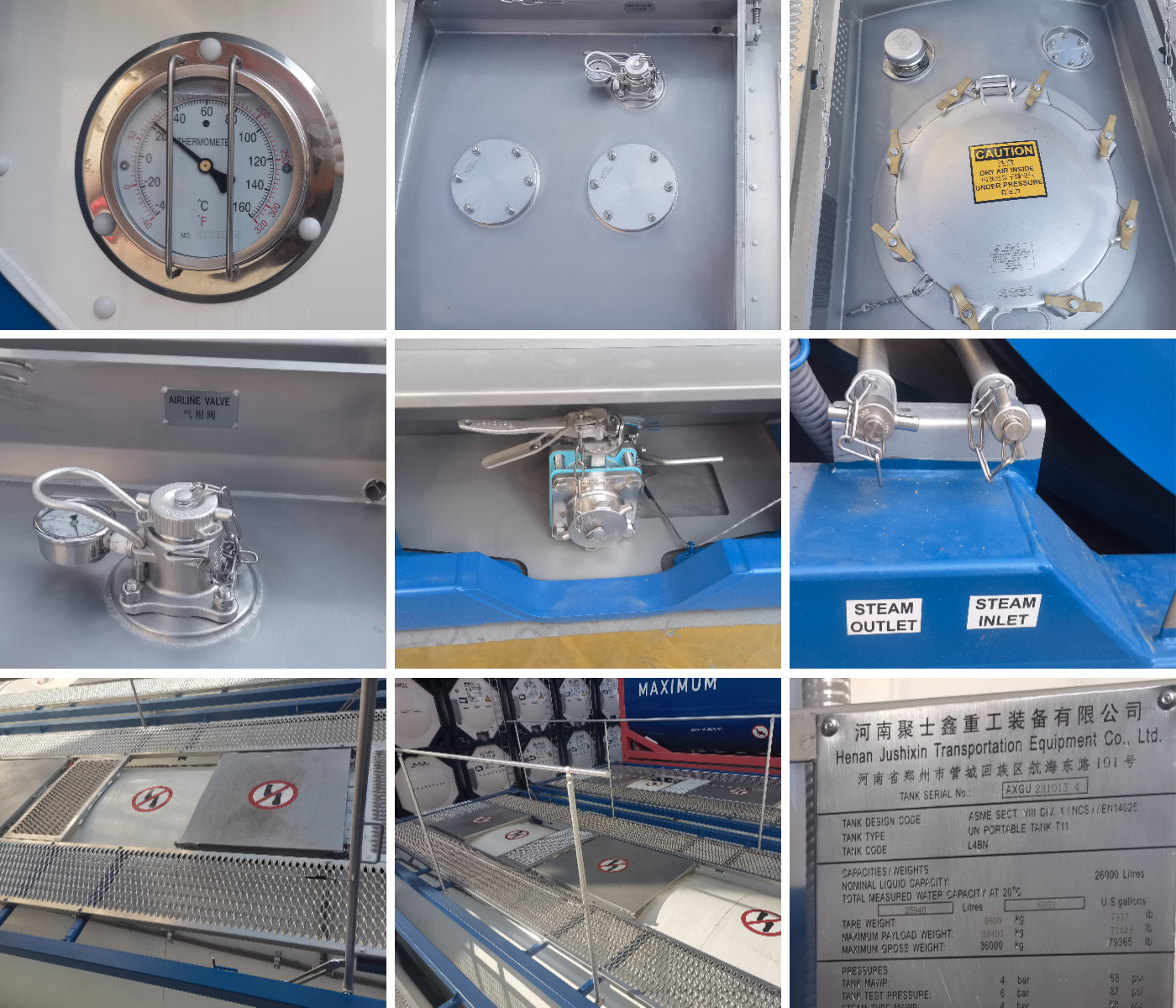

| PARTS LIST | |||
| A | A MANWAY ASSEMBLY DN500mm MANWAY.8 POINT FIXING WITH HANDNUTS |
||
| B | TOP DISCHARGE PROVISION 3"WELD-IN PAD FITTED WITH BOLTED BLANK FLANGE |
||
| C | AIRLINE CONNECTION 1.5"BSP AIRLINE BALL VALVE C/W DUST CAP AND CHAIN1 |
||
| D | RELIEF VALVE ASSEMBLY 2.5"BSP PRESSURE RELIEF VALVE WITHOUT FRAMEPROOF GAUZE. SET PRESSURE:VALVE44BARNOVACUUM |
||
| E | RELIEF VALVE PROVISION 2.5"BSP PRESSURE RELIEF VALVE WELD-IN PAD C/W BLANK FLANGE25" |
||
| F | BOTTOM OUTLET ASSEMBLY 45°3"HIGH-LIFT FOOT VALVE AND 3’’CLAMPED BUTTERFLY VALVE TERMINATING WITH3"BSP CONNECTOR AND CAP |
||
