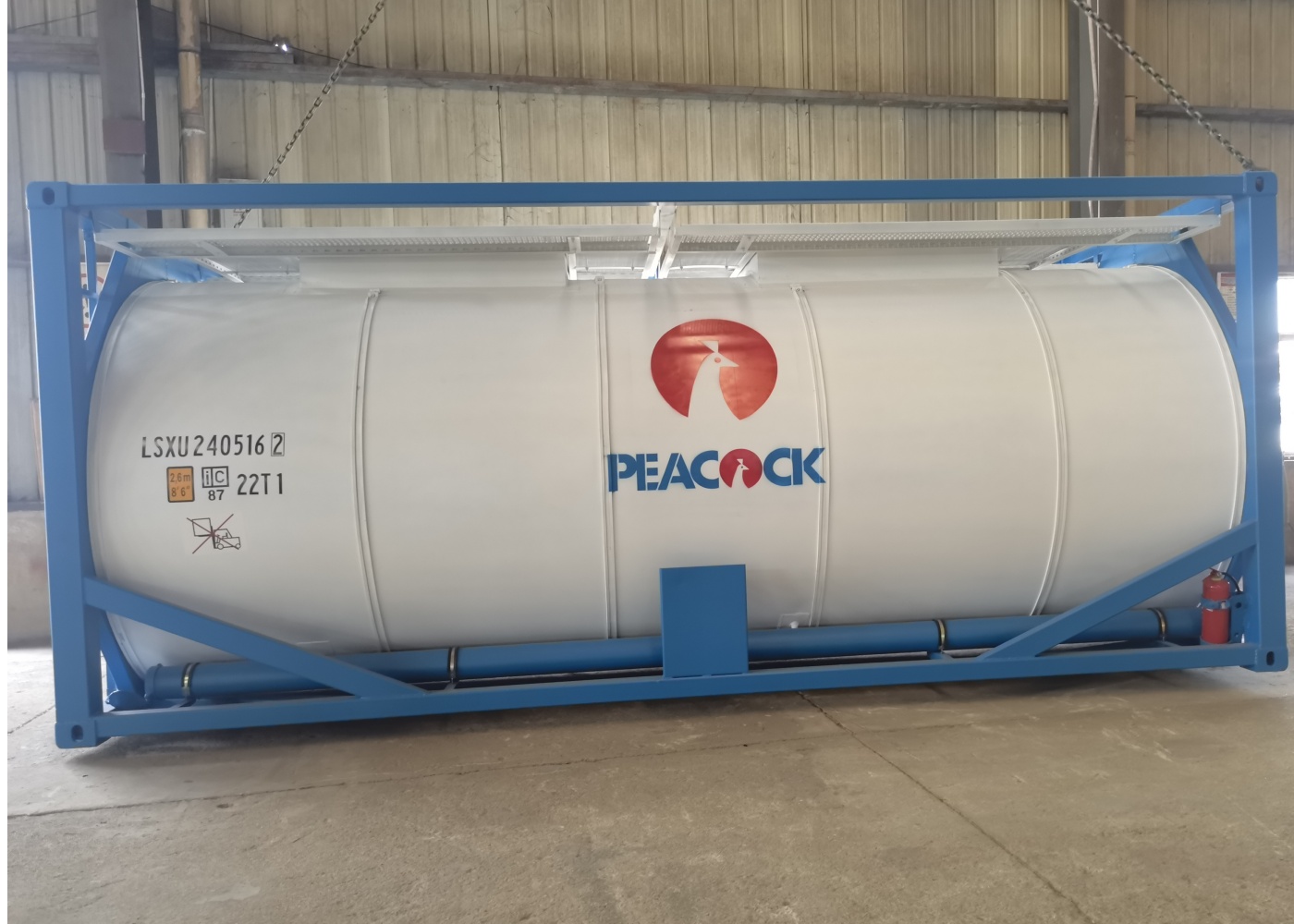

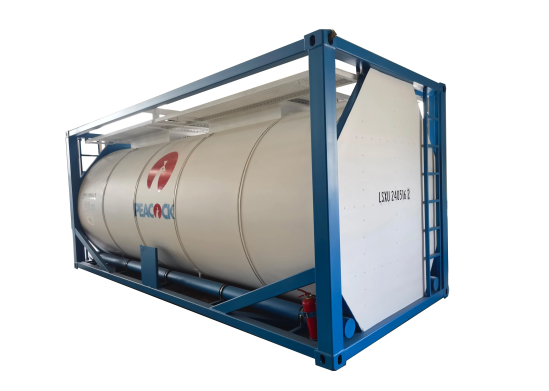

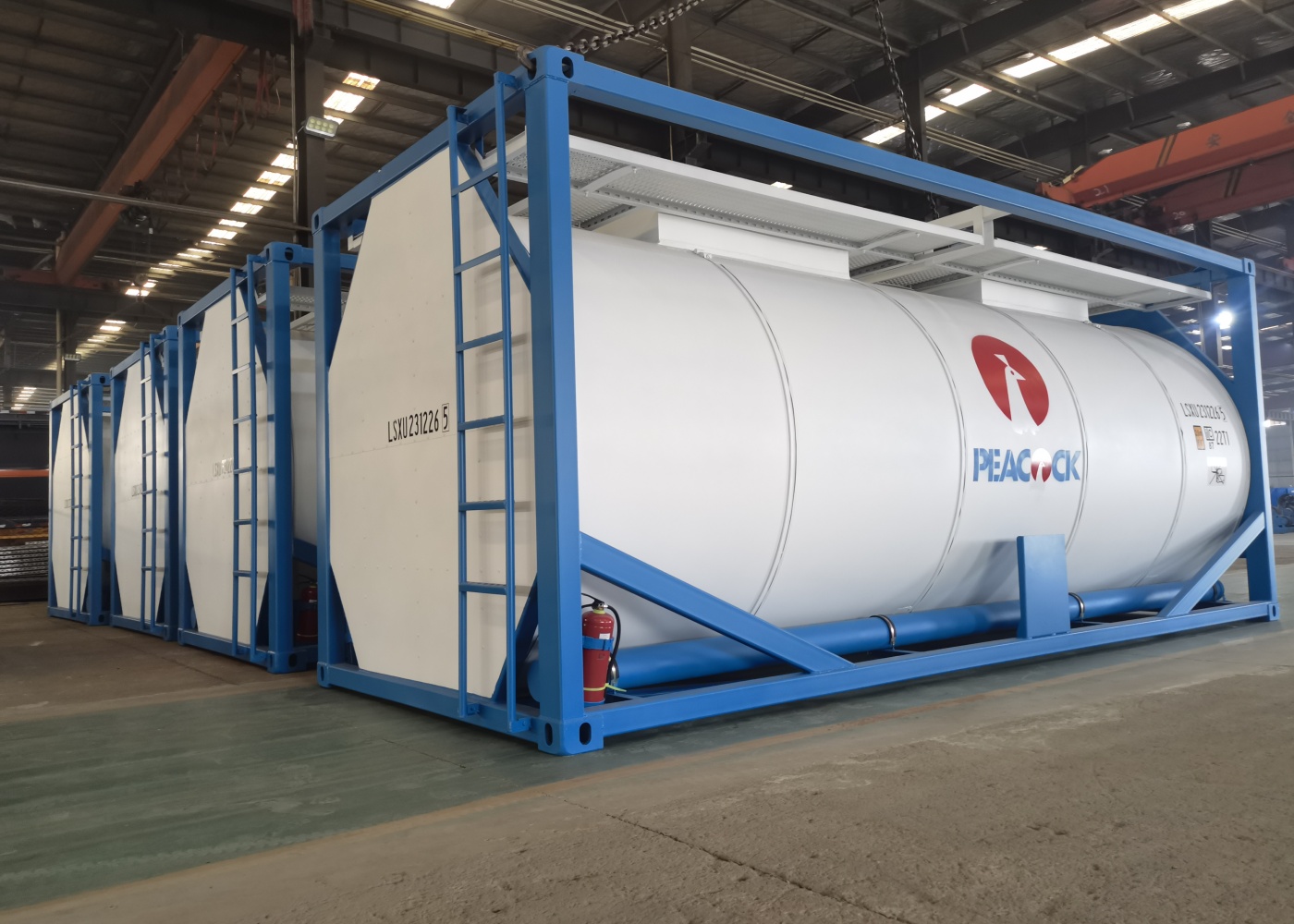

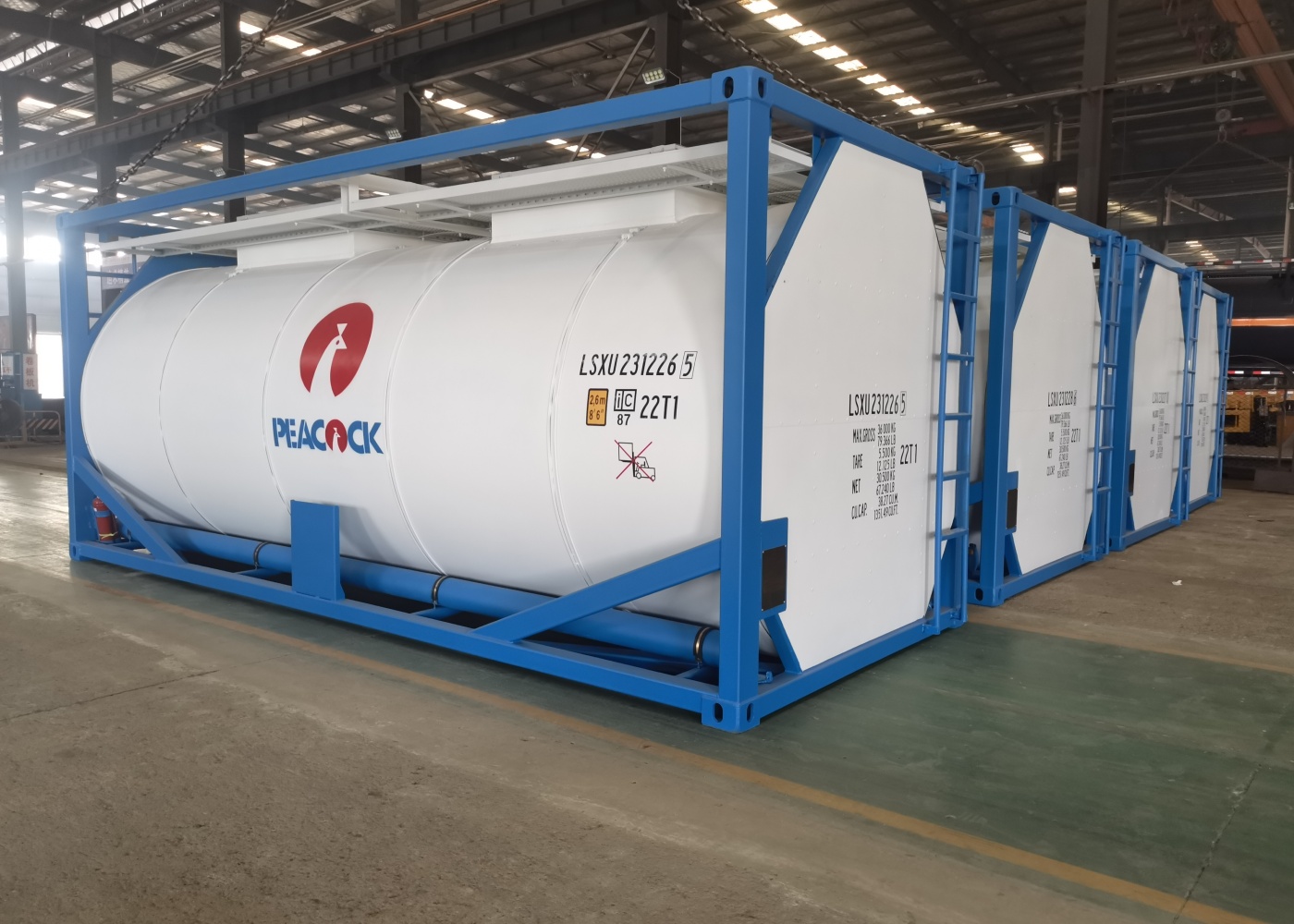

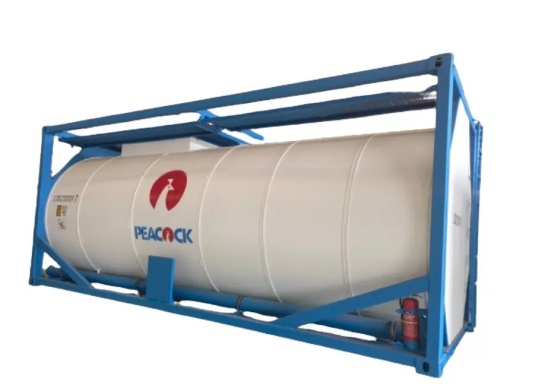

The 17.5 cubic meter T14 ISO Tank Container's carbon steel tank container with an internal lining is designed for the safe transport of various liquids, including chemicals and food-grade products. such as: Sulfuric acid/industrial hydrogen peroxide/liquid alkali/hydrochloric acid, etc.
Its robust carbon steel construction provides exceptional strength and durability, ensuring reliable performance even under demanding conditions. The internal lining acts as a protective barrier, preventing corrosion and contamination, thus maintaining the purity of the cargo. With a maximum load capacity of approximately 17,500 liters, this tank container is ideal for industries such as chemicals, agriculture, and food processing.
It is equipped with safety features like pressure relief valves, discharge valves, and level gauges, meeting international safety standards. The versatile design allows for easy handling and compatibility with various transport modes, including trucks and ships. This 17.5 cubic meter tank container is the perfect solution for businesses looking to transport liquids safely and efficiently across the globe.
parameters:
| DESIGN CRITERIA | |||
| Medium | Sulfuric acid/industrial hydrogen peroxide/liquid alkali/hydrochloric acid, etc. | ||
| Net volume | 17.5 | ||
| External dimensions | 6058*2438*2591 | ||
| Rated mass Kg | 36000 | ||
| Overall mass Kg | 5600 | ||
| Working PressureMpa | Atmospheric pressure | ||
| Design pressure Mpa | 0.4 | ||
| Test pressure Mpa | 0.6 | ||
| Design temperature range | -40~ +50 ℃ | ||
| Tank material | Q235B | ||
| Nominal thickness of shell mm | 6 | ||
| Nominal thickness of head mm | 8 | ||
| Lining anti-corrosion | LLDPE7042 16mm | ||
| Insulation | 50mm glass fiber wool + 1.0 cold board outer skin insulation + waterproof hoop tape | ||
| Walkway | Aluminum alloy crocodile non-slip walkway | ||
| Loading and unloading type | Top loading and unloading | ||

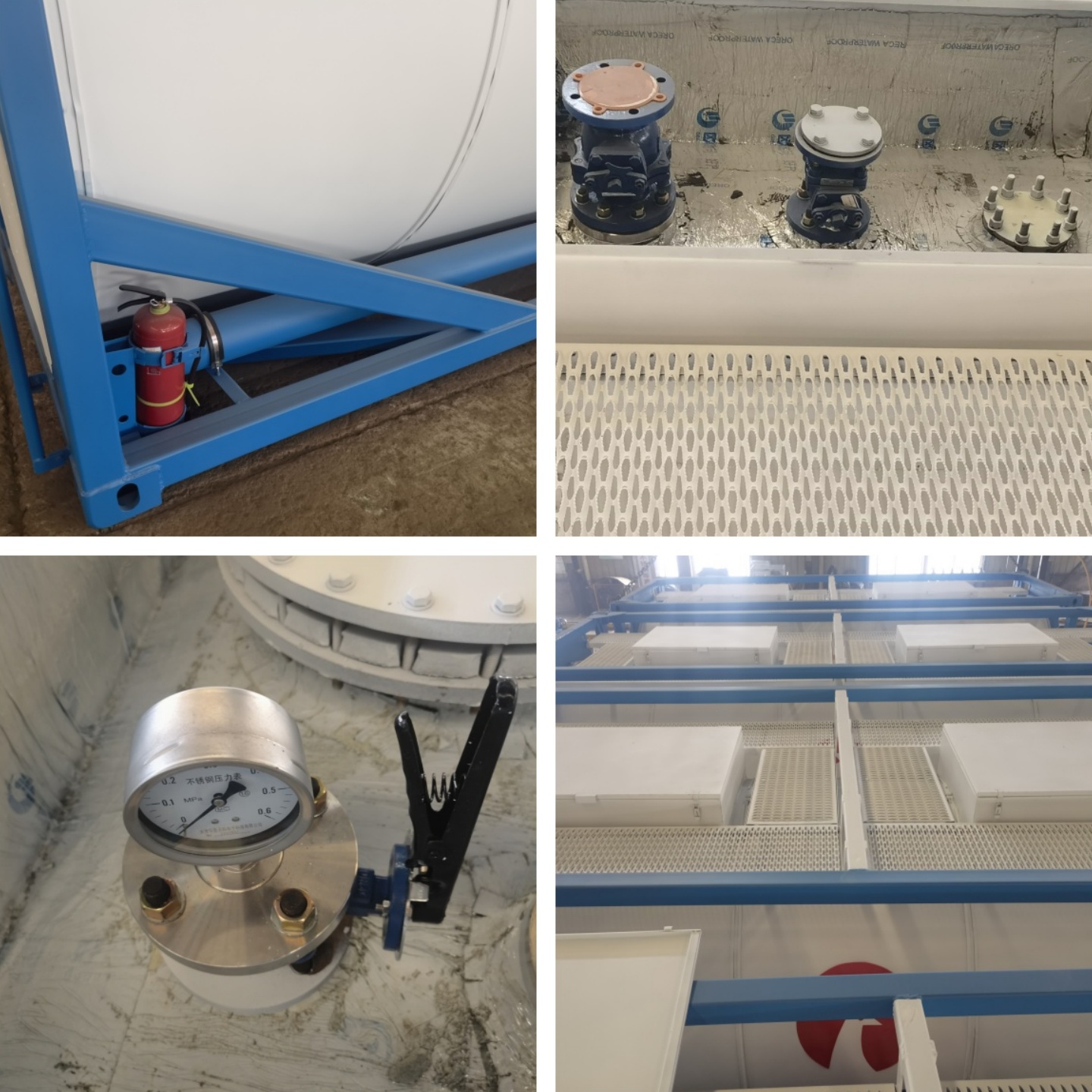

| Accessory Configuration | Top protection box with cover: one DN500 steel-lined plastic blind manhole, one coated safety valve with tandem PTFE-lined rupture disc and pressure gauge, one DN50 gas-phase stainless-steel fluorine-lined ball valve, one DN80 liquid-phase stainless-steel fluorine-lined ball valve (with siphon pipe and polyfluid nest inside the tank), and one DN80 back-up port. | ||
| Other | Simple ladder, etc. | ||

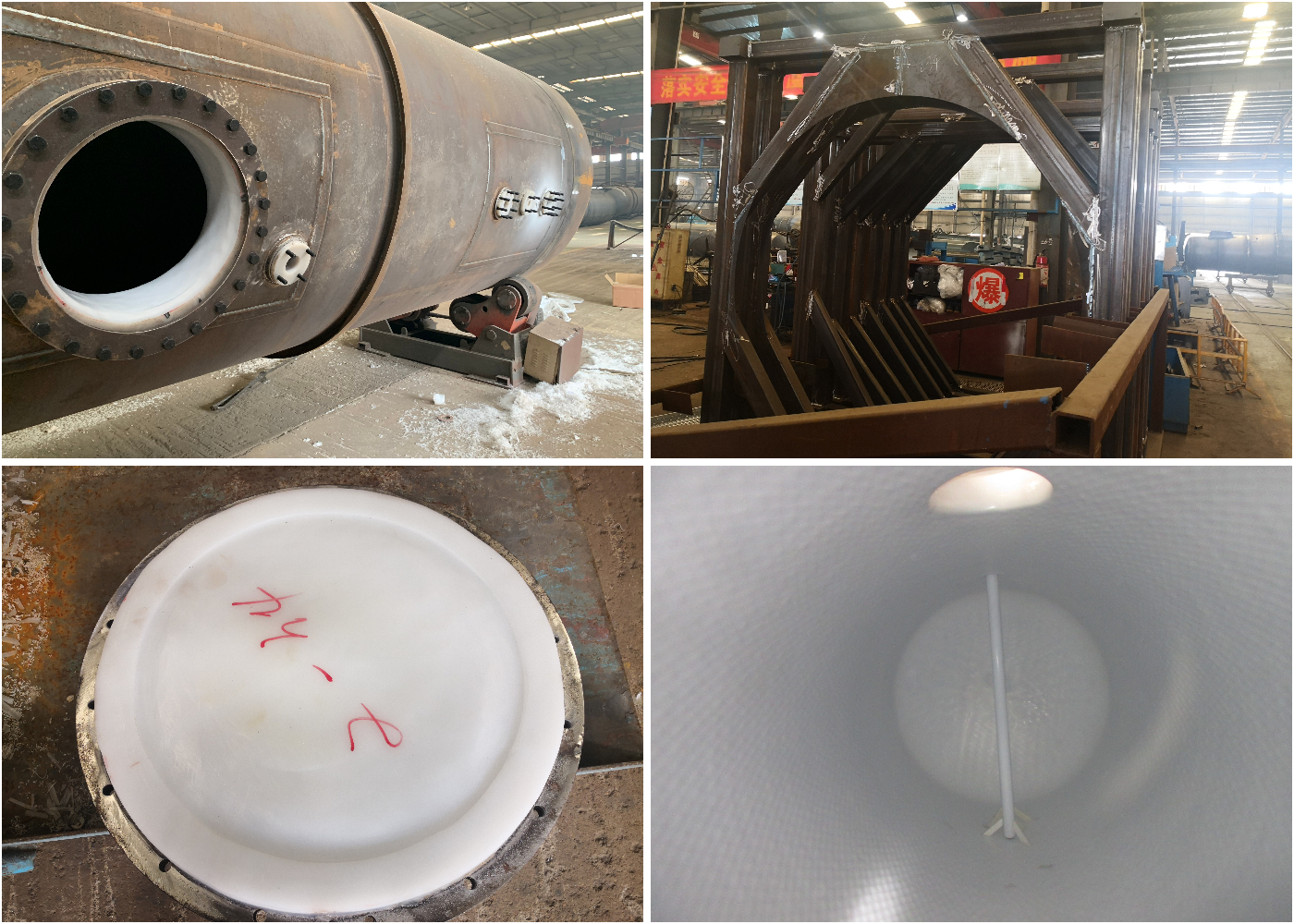

Workshop Display
