T21 Portable Tank Container Applicable media: for organometallic substances, triethylaluminium, dichloroethylaluminium, tri-n-alkylaluminium, tri-n-octylaluminium, trimethylaluminium, triisobutylaluminium, ethylaluminium sesquichloride and alkyl lithium series.

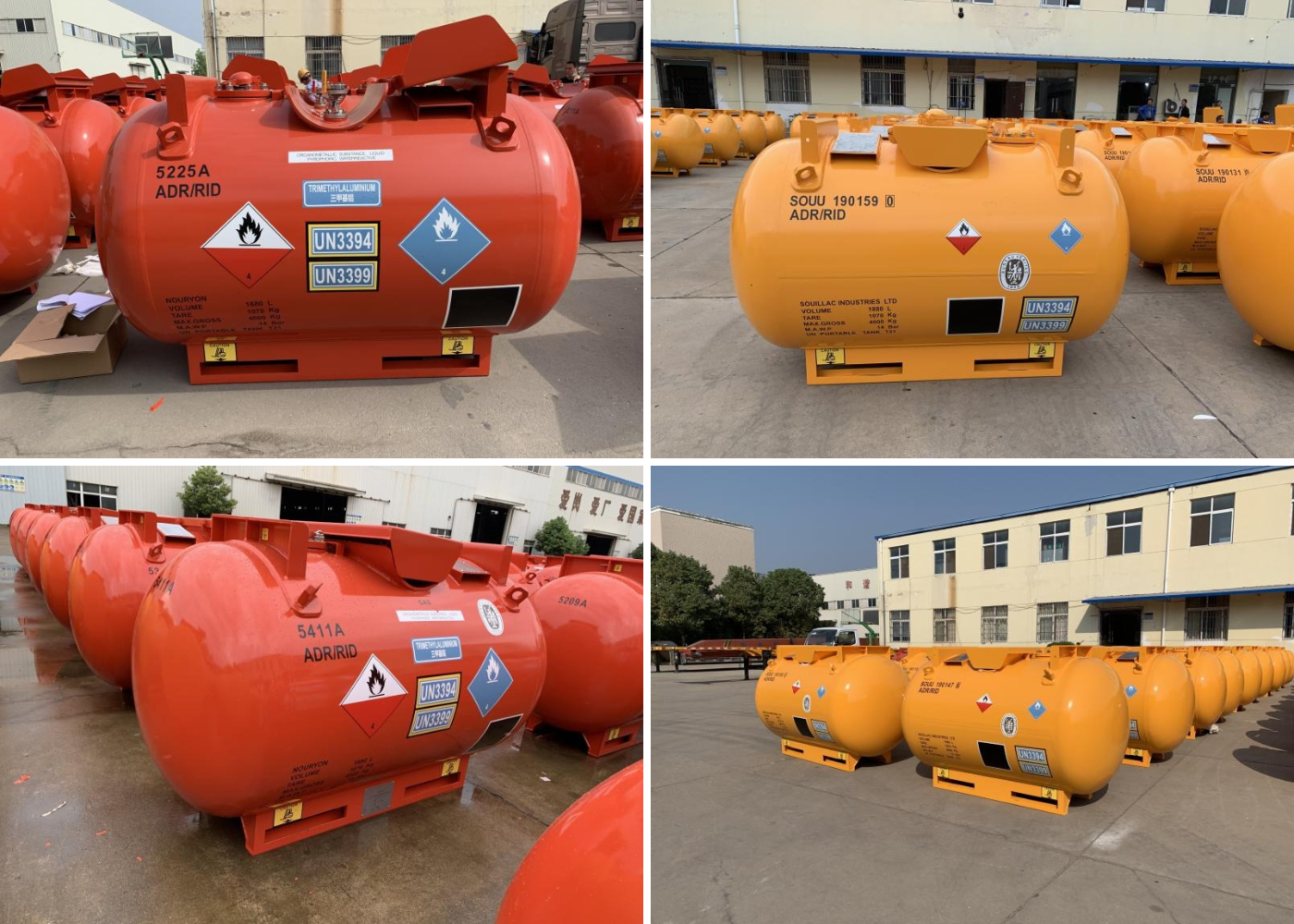

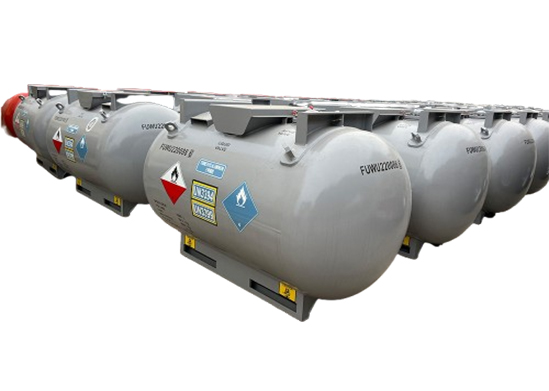

T21 Portable Tank Container consists of two parts: tank body and support saddle. The tank body is round and made of 16MnDR low temperature material, which can meet the temperature limitations of all regions in the world. ASME steel seal, can be applied to any country in the world in any region of the railway, road, sea transport of the joint transport.

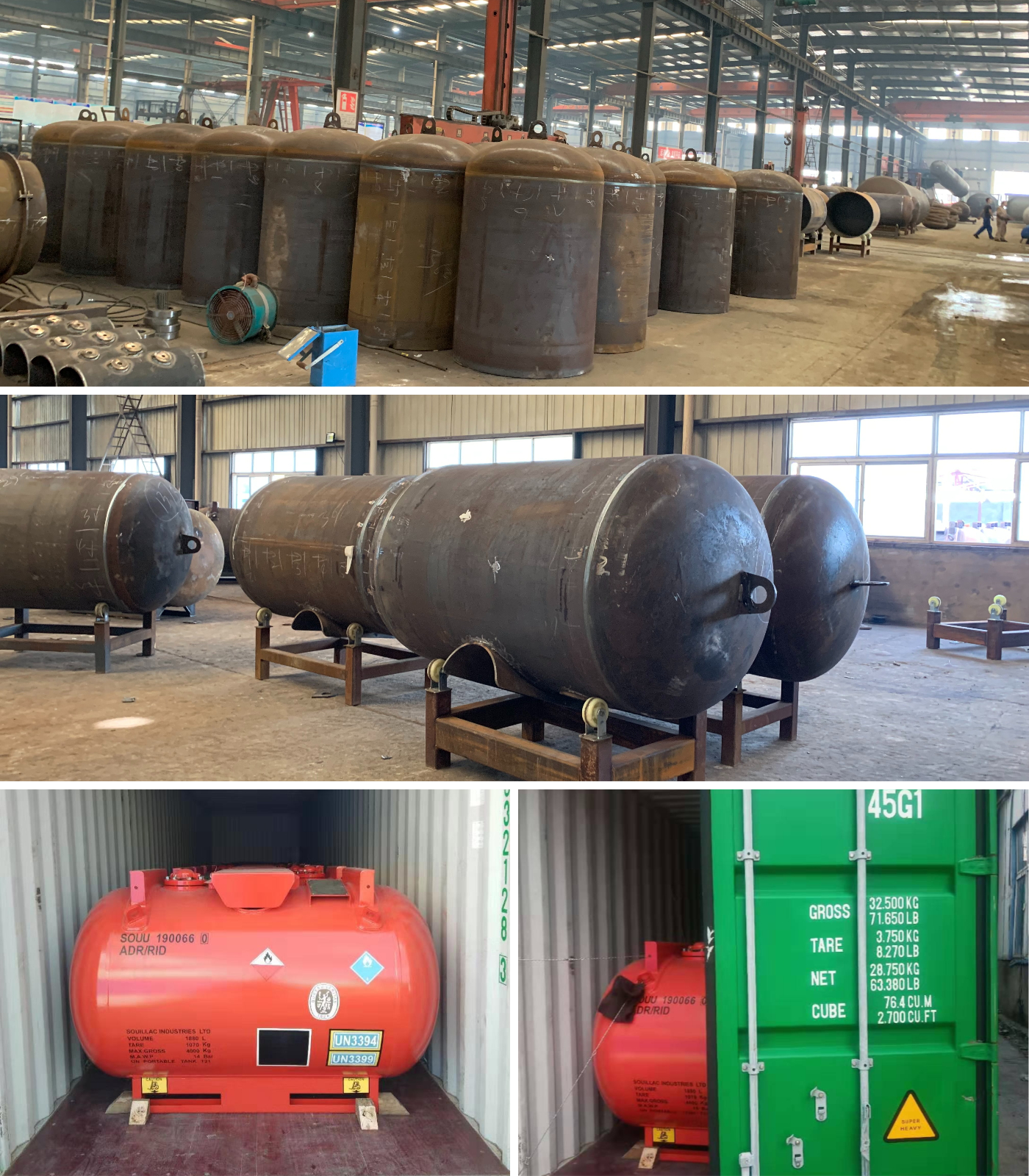

T21 Portable Tank is a product designed and developed according to the storage and transport of chemical materials used in chemical industry. Customers can directly load and unload goods in any place with chemical materials in the world and achieve global intermodal transport through a variety of means of transport, and the design of the tank is selected in accordance with the requirements of the International Maritime Organisation (IMDG Code) IMDG CODE35-10 and China's maritime dangerous goods rules. CODE35-10 and TSG R0005-2011 as the basis, through the transport of physical and chemical properties of the transported materials, combined with the actual transport of a variety of industrial and mining and the design and production, can provide BV/LR classification society tank certificate.
T21 mobile tank horizontal tank material SA-516 (size 2128*1148*1388 mm);

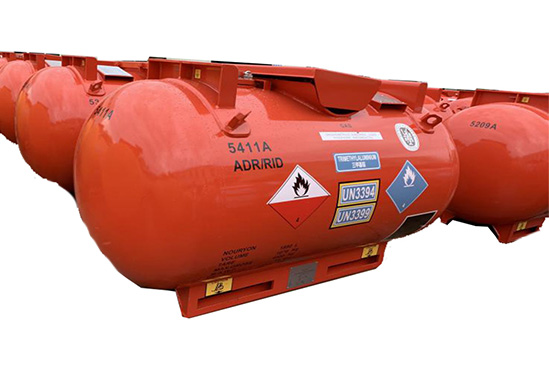

Suitable for UN 3394 UN3399 metal alkyl series
Transportation of general media under the provisions of UN Portable type T21
Container Design Standards: IMDG CODE 2016,ADR/RID,49CFR,TIR,USDOT,T21 UN Portable Tank, ASME BPVC Sec.Ⅷ Div.1-2017
Other configurations:
Rupture disc a DN50 positive arch rupture disc (tandem safety valve)
Gas phase valve, one DN15 gas phase ball valve.
Liquid-phase valve, one DN20 liquid-phase ball valve.
| Capacity | 1880 Llitres+/-2% |
| Maximum Gross Weight | 4000 KG |
| Equipment net weight | 1070 KG |
| Maximum allowable working pressure | 14 BAR |
| Design pressure | 14 BAR |
| External pressure | 0.41 BAR |
| Vessel design temperature | -40℃ to 65℃ |
| Container material | Barrel: SA-516M, Head SA-516M |
| Thickness | Barrel: Nominal Thickness = 12mm, Head: Nominal Thickness = 14mm |
| Base material | SA-350M |
| Radiographic testing | barrel: 100% flaw detection (weld coefficient = 1), Head: 100% flaw detection (weld coefficient = 1) |
| Heat treatment | Tank Stress Relief Heat Treatment |
| Bursting disc | One DN50 built-in safety valve |
| Gas phase valve | one DN20 gas phase ball valve |
| Liquid phase valve | One DN15 liquid phase ball valve |
| Flange standard | PN25 |
| External processing & painting | The frame is sanded grade Dada SA2 1/2 and painted as follows: Primer minimum dry film thickness: 70um Intermediate paint Minimum dry film thickness: 80um Topcoat minimum dry film thickness: 100um Total minimum dry film thickness: 250um |
| Frame color | Customers need to specify the frame color |
| Labeling | We provide mandatory logos in actual size User-required logos are provided by the user, we are responsible for manufacturing and labeling |
