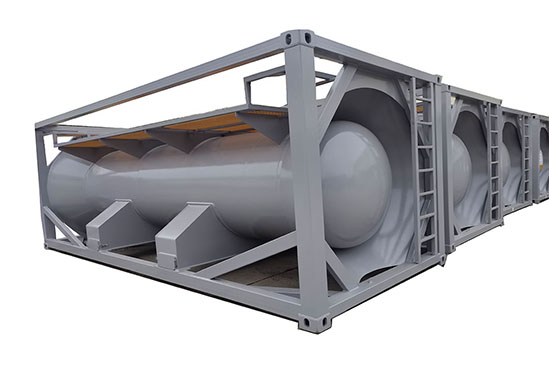

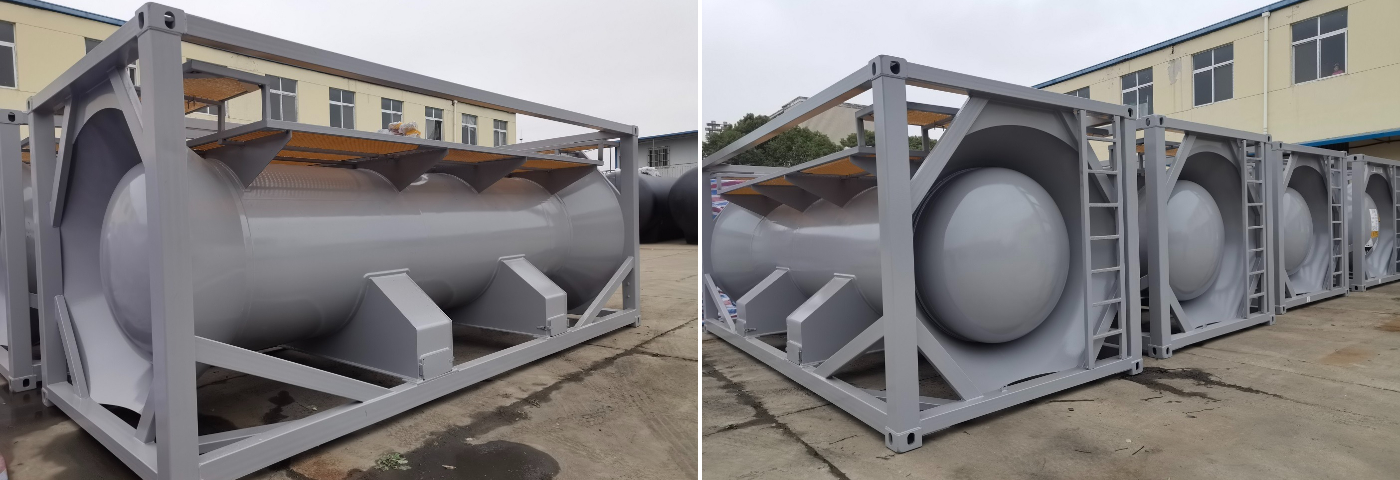

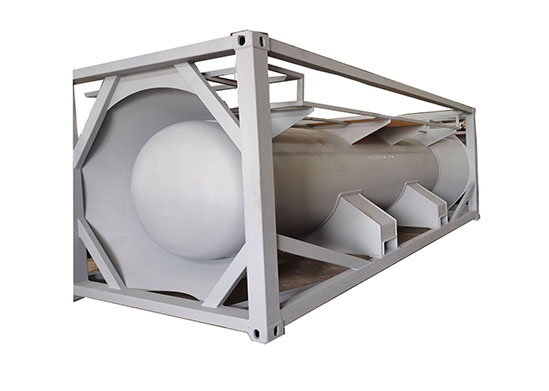

The T22 Bromine Tank Container is lead lined internally to prevent corrosion and contamination while maintaining excellent chemical resistance. With a capacity of up to 8320 litres, it is ideal for industries requiring chemicals.
Some of the key features and benefits of this container include:
Chemical Resistance: Bromine medium, lead lining offers excellent resistance to a wide range of chemicals, ensuring your cargo is transported safely and free from contamination.
Corrosion Protection: Lead lining provides excellent protection against corrosion, extending the life of the container and minimizing maintenance requirements.
Easy to Clean: Bromine medium, the smooth surface of the lead lining makes it easy to clean and maintain, ensuring the container remains in good condition for a long time.
Superior Quality: T22 Bromine Tank Container is manufactured using only the highest quality materials and advanced manufacturing processes, ensuring it complies with all required industry standards and regulations.
| Model | T22 |
| Medium | Bromine UN1744 |
| Volume L | 8320 |
| External dimensions mm | 6058*2438*2438 |
| Tank dimensions mm | φ1454*5701 |
| Design pressure Bar | 6.67 |
| Test pressure Bar | 10 |
| Design temperature range | -40℃~65℃ |
| Tank material | SA516M Gr485 |
| Nominal shell thickness mm | 10 |
| Nominal head thickness mm | 12 |

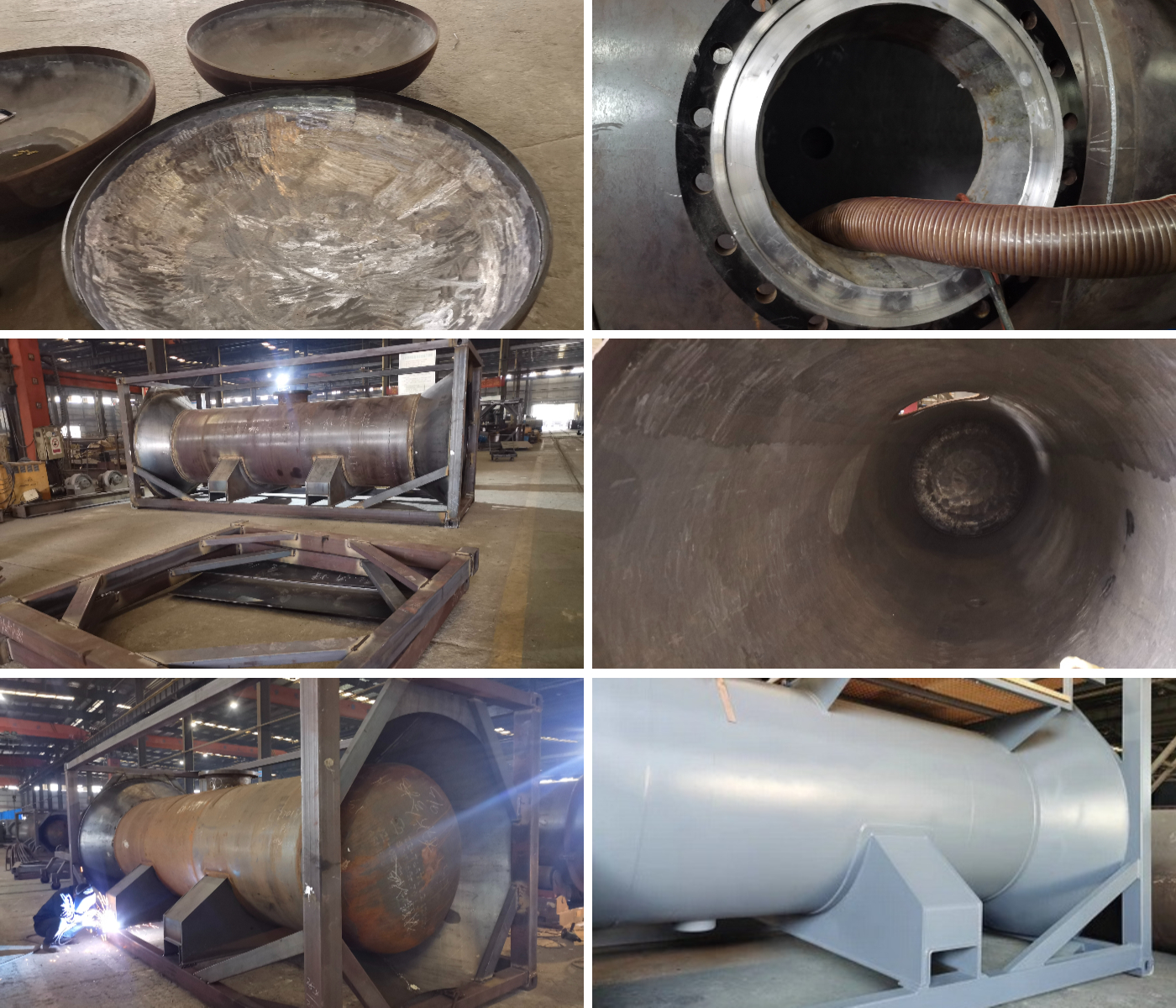

| Inner tank anticorrosion | Lead lining 6~7mm |
| Net weight of tank container KG | ≈7800 |
| Maximum operating mass KG | 36000 |
| Loading and unloading type | Loading and unloading |

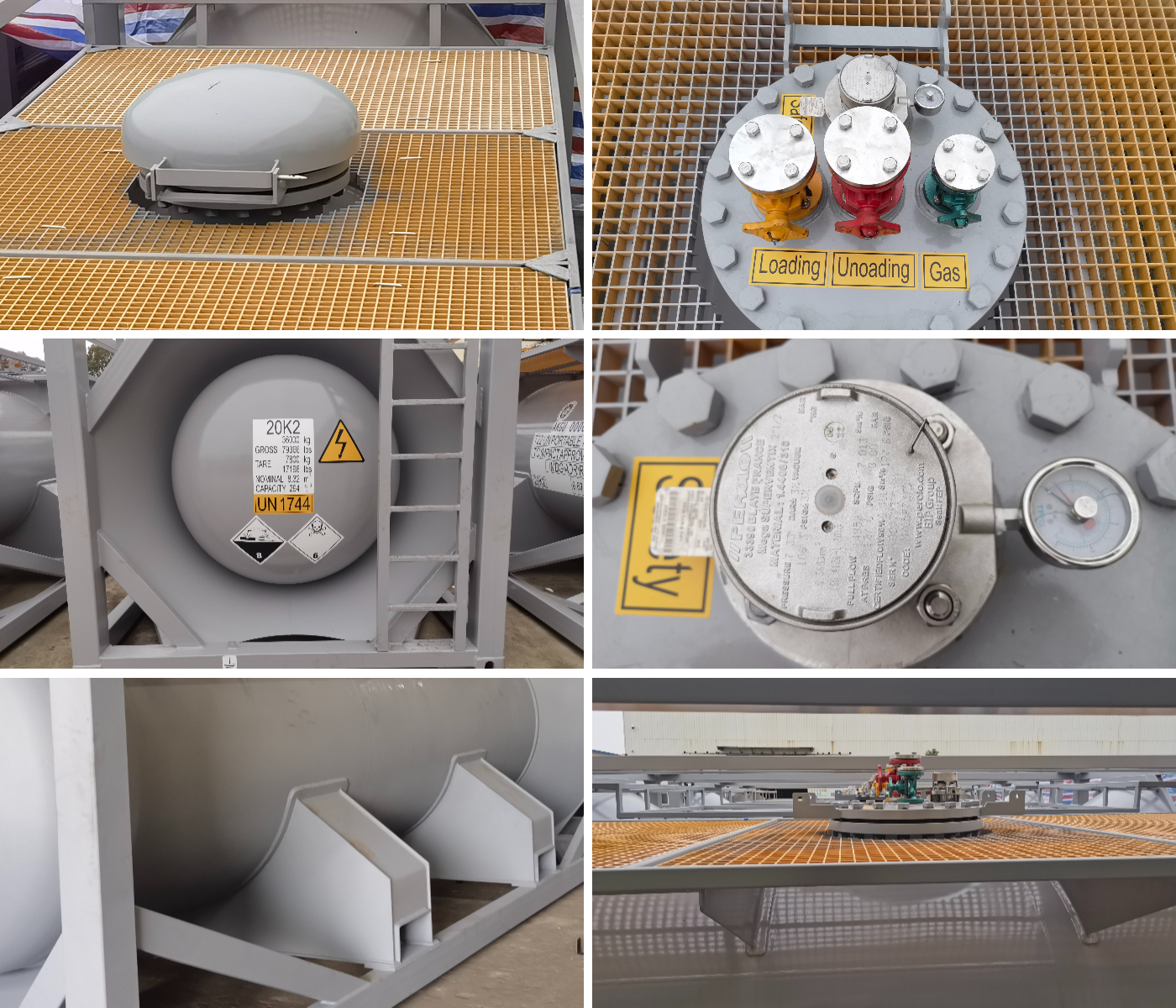

| Accessory configuration | Safety valve + bursting disc * 1, DN65 Gas phase valve * 1, DN25 Liquid phase valve (with PTFE siphon and liquid collection nest) * 1, DN40 Spare port * 1, DN40 Manhole * 1, DN500 |
| Design/manufacturing standards | IMDG CODE, ADR/RID, 49CFR, TIR, USDOT, T22 UN Portable Tank, ASME BPVC Sec.Ⅷ Div.1-2017 |
| Third-party inspection | BV, ASME, TS, CCS |
