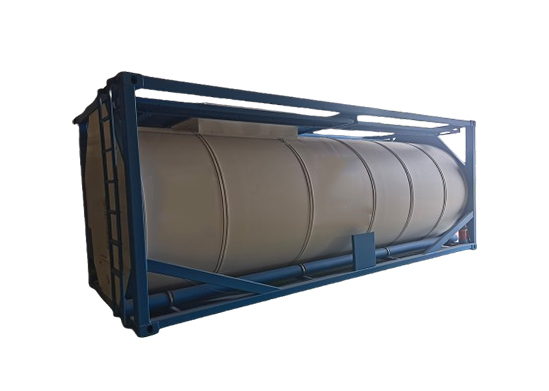

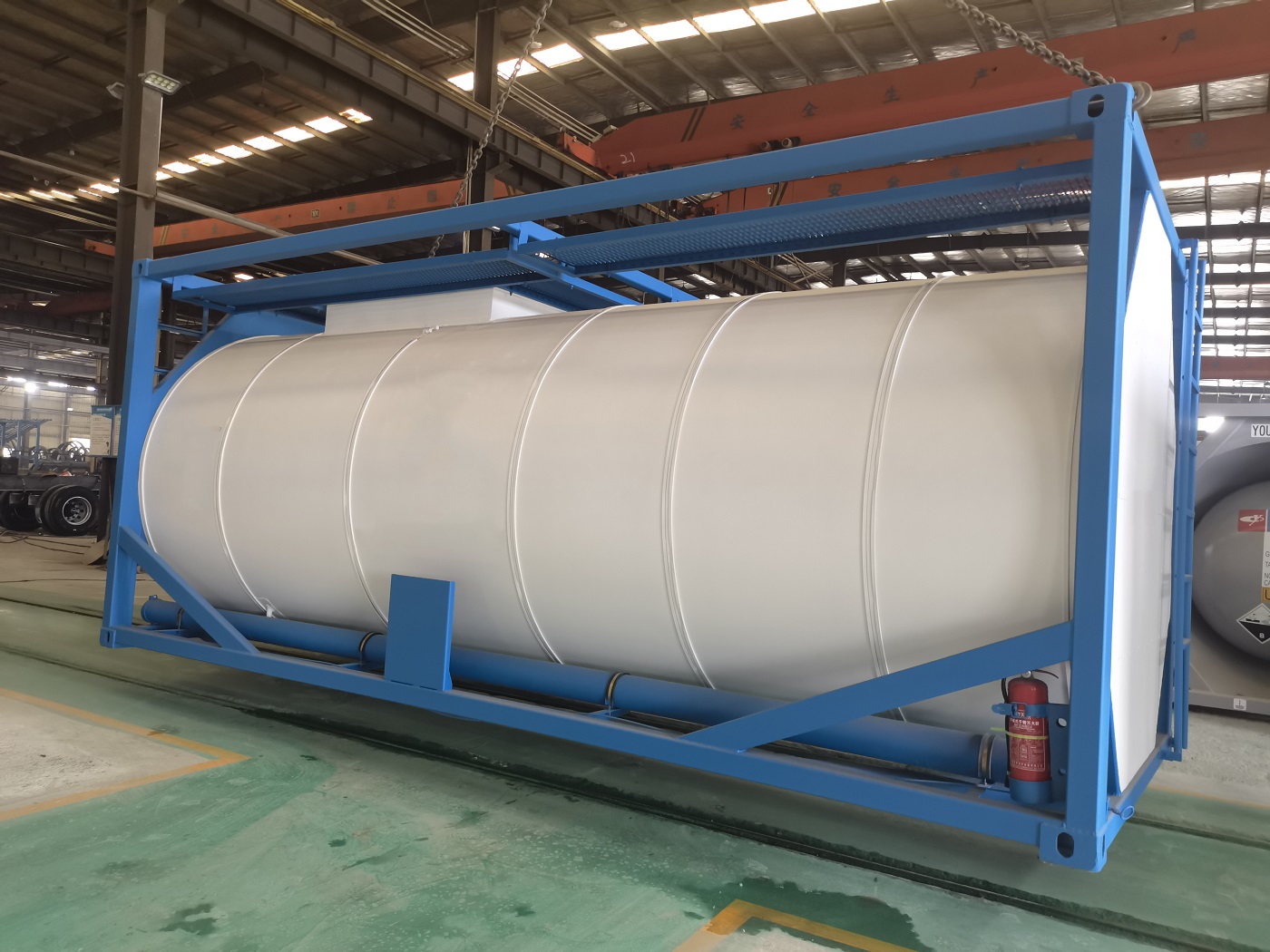

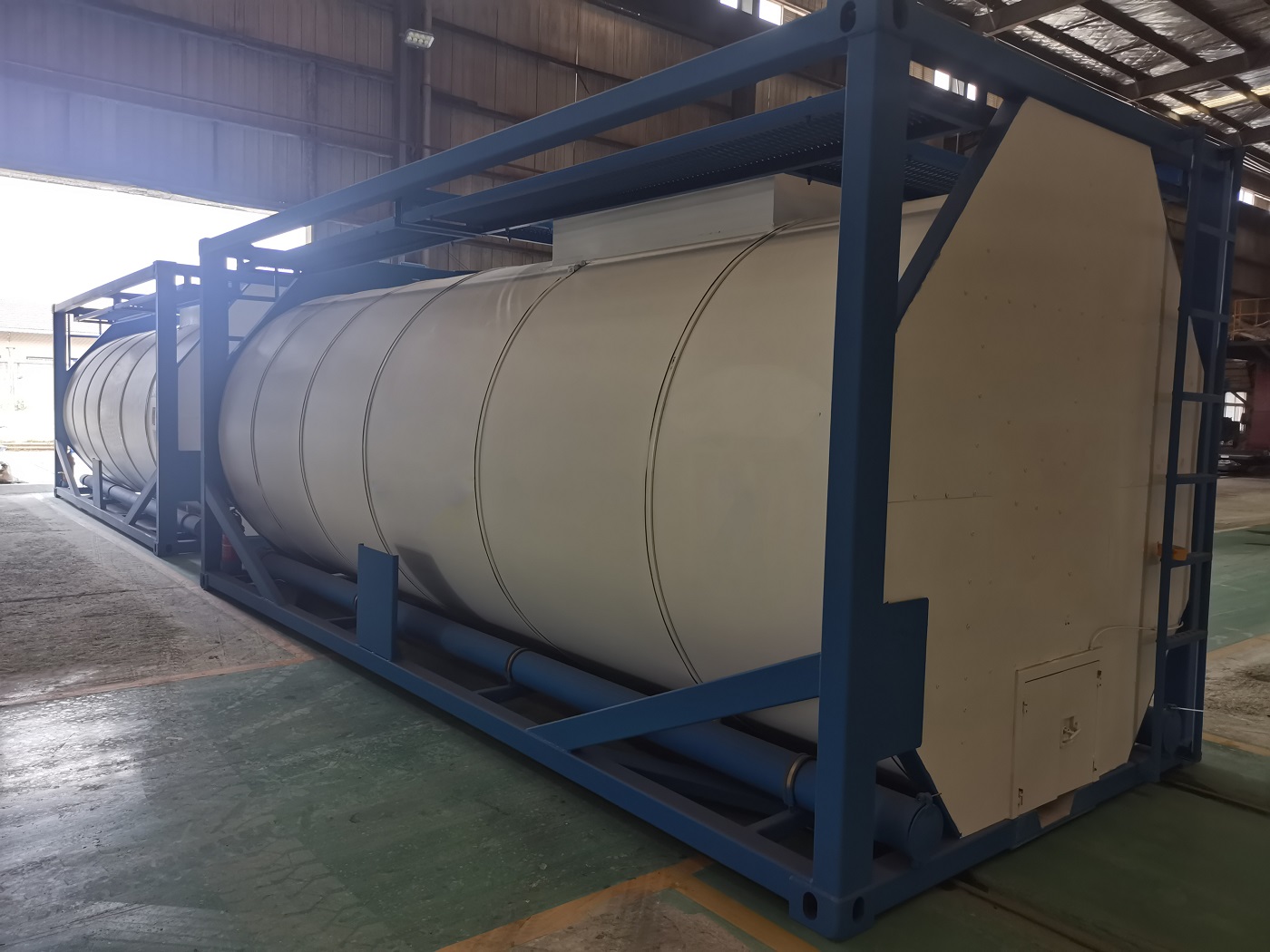

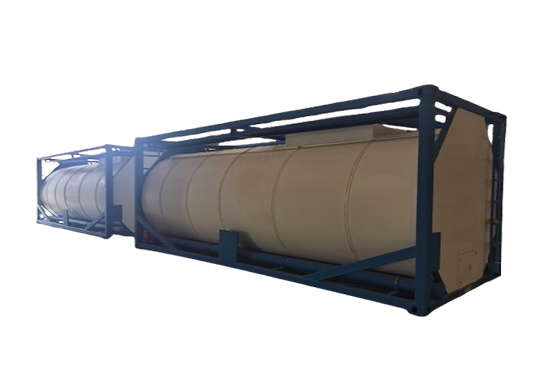

T4 ISO tank container

Introducing our T4 tank container, designed with a robust carbon steel structure and a polyethylene (PE) lining for superior chemical resistance. This innovative design ensures the safe storage and transport of various liquids, including hazardous and corrosive materials. The carbon steel outer shell provides exceptional durability and strength, while the PE lining enhances compatibility with a wide range of chemicals, minimizing the risk of contamination or reaction.

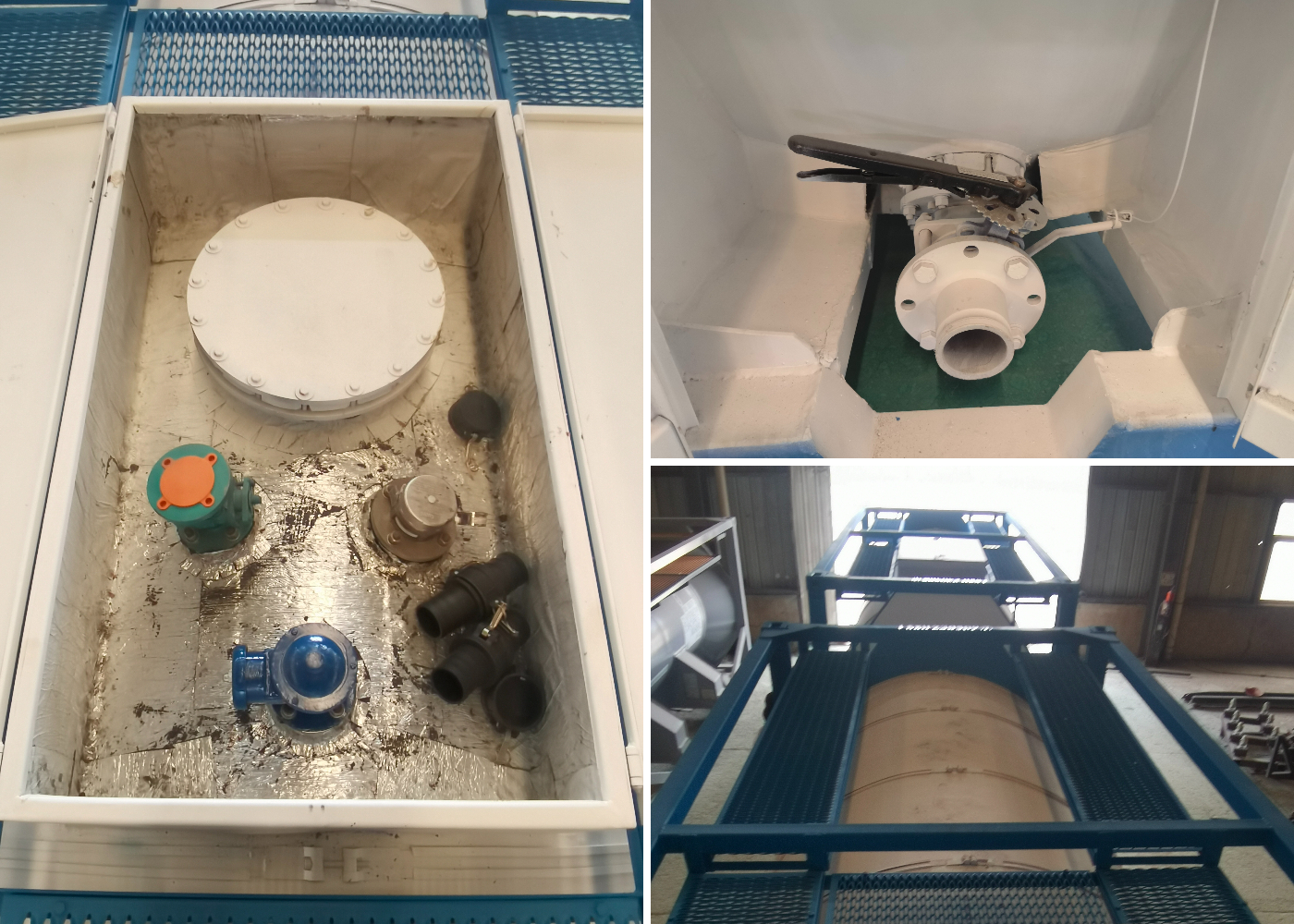

The T4 tank container features a controlled environment, preventing corrosion and prolonging the lifespan of the container. With user-friendly access points for filling and emptying, as well as pressure relief valves for safety, this tank is both practical and secure.

Key Advantages

Durable Construction: The combination of carbon steel and PE lining offers outstanding strength and chemical resistance.

Wide Compatibility: Ideal for various liquid transport needs, ensuring safe handling of hazardous substances.

Safety Focus: Equipped with safety features to prevent leaks and ensure compliance with international transport regulations.

Cost-Effective: Long-lasting performance reduces the need for frequent replacements, making it a cost-efficient option for your business.

AMBIENT TEMPERATURE RANGE -20TO+65
VESSEL DESIGN TEMPERATURE -40 TO+130
DESIGN PRESSURE TANK:1.76 BAR
TEST PRESSURE TANK: 2.65 BAR
EXTERNAL DESIGN PRESSURE 0.41 BAR
MATERIALS:  FRAME
SHELL AND DISHED ENDS
GB/T 1591-Q345D
ASTM A240 304 OR EQUIVALENT
SHELL NOMINAL THICKNESS 5mm NOMINAL
HEAD NOMINAL THICKNESS 6mm NOMINAL BEFORE FORMING
CORROSION ALLOWANCE 0.2m
RADIOGRAPHY:SHELL
                             DISHED ENDS
SPOT
100%
NOMINAL CAPACITY 25,000LITRES NOMINAL
MAX GROSS WEIGHT 36,000kg
TARE WEIGHT 3,950kg±3%
STACKING CAPABILITY 216,000KG
MAX PAYLOAD 32,050KG
PRODUCT LIST AS LISTED UNDER UN PORTABLE TANK T4
CONTAINER SIZE 6058 mm x 2438 mmx 2591 mm
INSULATION ROCKWOOL
CLADDING GRP
FRAME FINISH SHOT BLAST SA2.5: 3 COAT PAINT SYSTEM
INSPECTION AUTHORITY BV or LR
