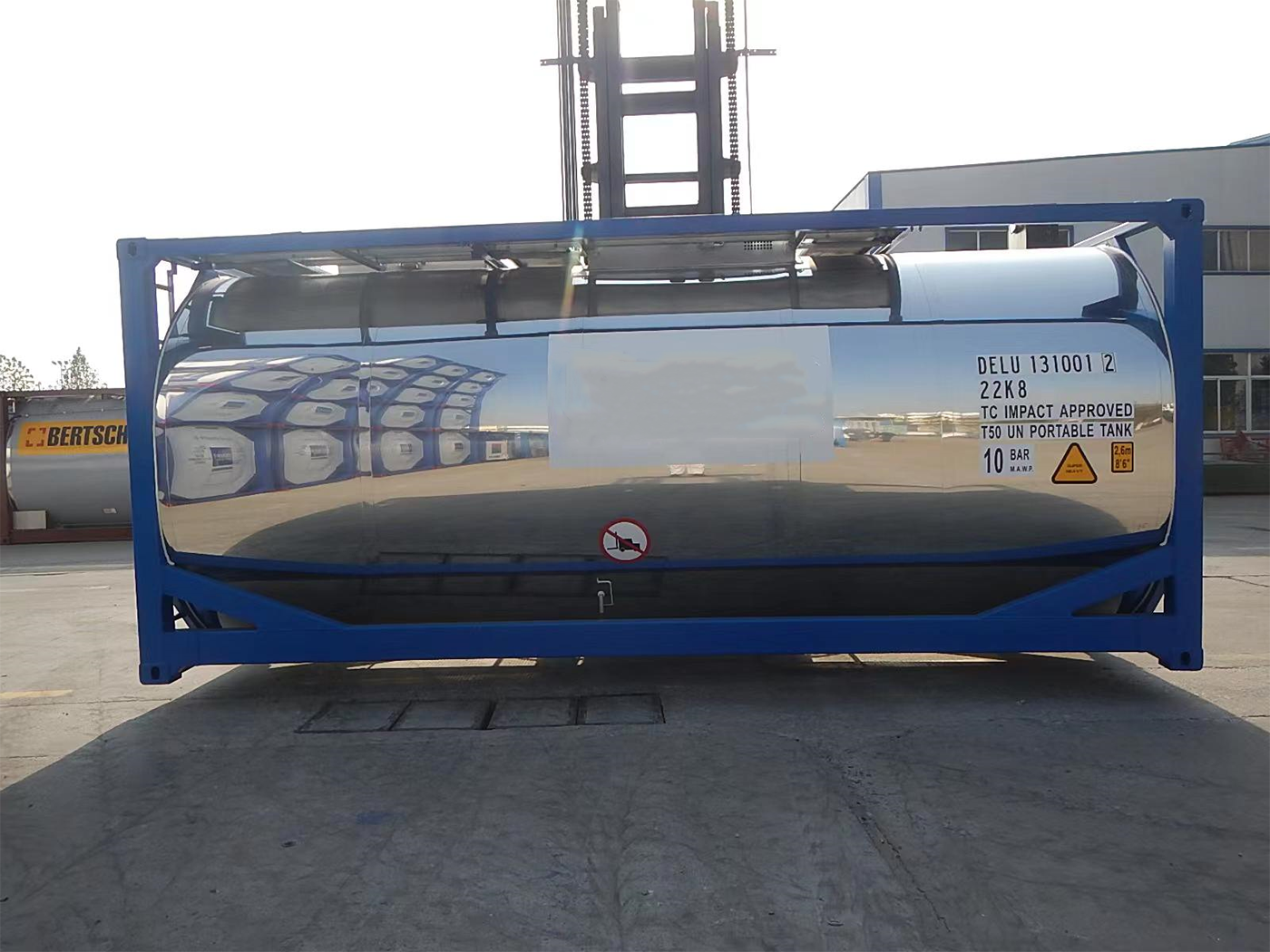

The 20-foot T50 tank container for transporting ethylene oxide (EO) offers numerous advantages and features that make it ideal for the chemical industry. Designed specifically to handle the unique requirements of ethylene oxide, this tank container ensures safe storage and transportation of this highly volatile and flammable substance.
One of its key features is the robust construction, which includes high-strength stainless steel to resist corrosion and maintain integrity under various environmental conditions. The container is equipped with advanced insulation to prevent temperature fluctuations, ensuring stable product quality during transport.
CODES AND REGULATIONS | T50 UN PORTABLE TANK(IMDG,ADR/RID,US-DOT),CSC,TC CUSTOMS,UIC,ISO 1496/Ⅲ |
PRESSURE VESSEL CODE | ASME SECT. I DIV.1, latest version.STAMP ASME CERTIFICATION MARK WITH "U" DESIGNATOR |
MAWP. | 10 BAR (145 Psi) |
DESIGN EXTERNAL PRESSURE | 1 BAR (14.5 Psi) |
WORKING TEMPERATURE | -40℃~50℃(-40℉~122℉) |
MDMT. | -40℃(-40℉) |
WORKING MEDIUM | ETHYLENE OXIDE (UN1040) |
TANK MATERIAL | SA240 304 |
CORROSION ALLOWANCE | 0mm |
RADIOGRAPHY EXAMINATION | FULL |
JOINT EFFICIENCY FOR VESSEL | 1.0 |
POST WELD HEAT TREATMENT | NO |
HYDROSTATIC TEST PRESSURE | 13 BAR (189 Psi) |
LEAKAGE TEST PRESSURE | 4 BAR (58 Psi) |
RELIEF VALVE OPEN PRESSURE | 10 BAR 1145 Psi) |
FRANGIBLE DISC RUPTURE PRESSURE | 11 BAR (160 Psi) |
INSULATION | 0.8mm 304 0VER 100mm GLASS FIBER |
CONTAINER SIZE | 6058mm lg x 2438mm wide x 2591mm high |
TANK OUTSIDE PROTECTION | ACID PICKLED PASSIVATED FOR VESSEL INTERNAL SURFACE |
DELIVERY CONDITION | FILLED WITH 1.0 BAR DRY CLEAN NITROGEN,DEW POINT LESS OR EQUAL TO -20℃ |
FRAME CORROSION PROTECTION | Powder coating or painting |
CAPACITY(-1.+1%) | 22000 LITERS |
M.P.G.M. | 36000 kg |
TARE WEIGHT (NOMINAL) | 6300 kg |
INSPECTION AUTHORITY | BV or LR |
