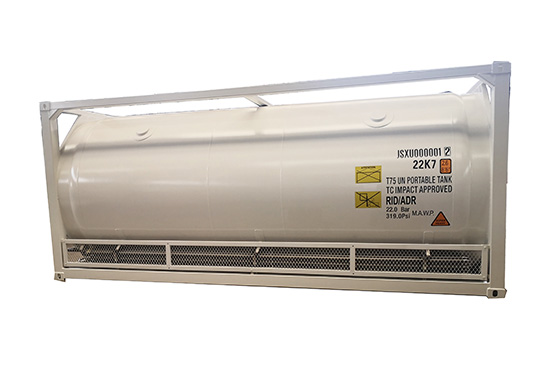

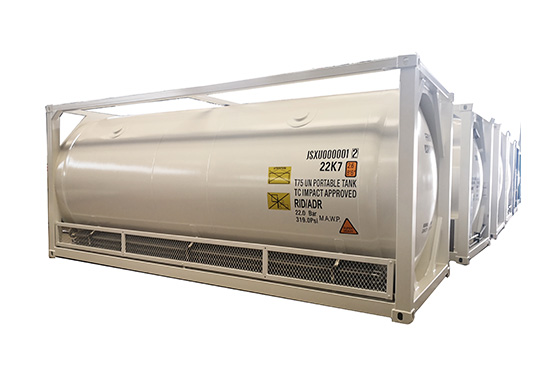

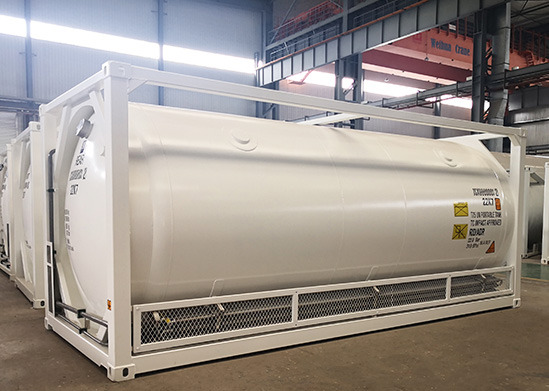

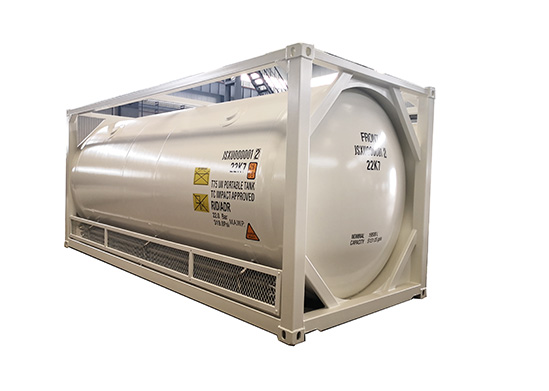

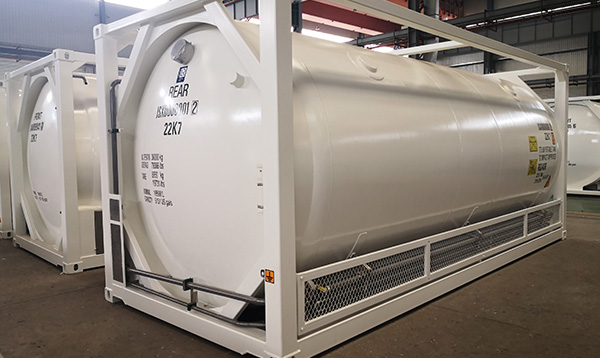

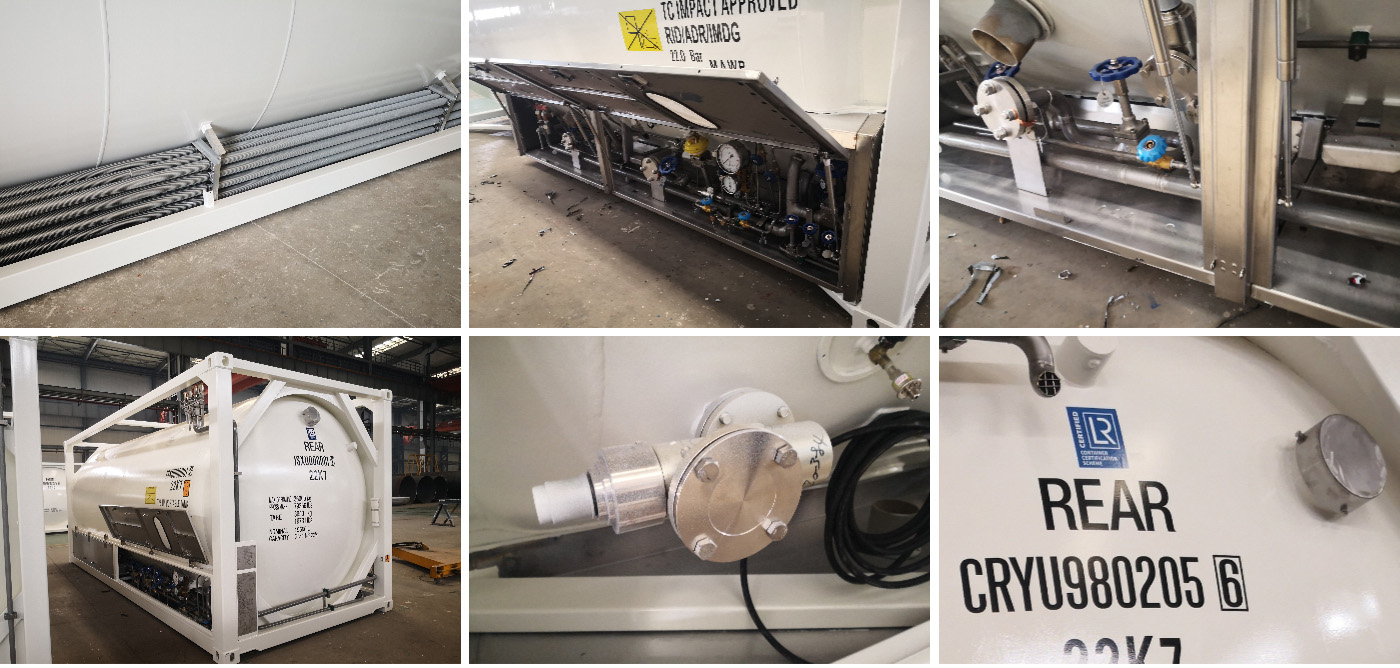

T75 is a type of gas tank container, It is a low temperature tank, and the transport medium includes various liquefied gases, such as liquid oxygen, liquid nitrogen, etc.
It is composed of stainless steel inner tank, high vacuum multi-layer insulation and outer skin. Comes with LR certification. Tank containers have the important advantages of being economical, fast and safe.
T75 tank container is specifically designed for the safe transportation of liquefied gases,equipped with advanced insulation technology, this tank maintains the stability of its contents while minimizing thermal loss. The tank container also includes specialized valves and fittings for secure loading and unloading, ensuring operational efficiency and safety throughout the transport process.The 20-foot T75 tank container it is ideal for industrial applications such as medical facilities, manufacturing, and food processing. The T75 container meets stringent international safety standards, featuring advanced safety valves and pressure monitoring systems to prevent accidents. Its compact size allows for easy handling and transport via shipping containers, rail, or trucks. This versatile and reliable T75 tank container is the perfect choice for companies looking to transport essential gases efficiently and safely across the globe, catering to diverse industry needs.
| Main material Cover | inside tank SA-240M 304 |
| Main material Cover | outside tank Q345R |
| Tank Shape | Column Shape,Horizontal |
| Nominal Medium | 20500L |
| Gross mass(kg) | 34000 |
| Tare Weight(kg) | 11050kg |
| Filling ratio | 95% / 85% |
| Max. Allowed Working Pressure | 16Bar |
| Design Pressure | 22Bar |
| Baffles of the inner vessel | Two transvers baffles |
| Design temperature(ºC) | -196 to 50 |
| Type of insulation | High vacuum multi-layer |
| Valve types for cryogenic tanks | cryogenic valves |
| Safety Valve | DN25 PN2.5 DAH-25A1 |
| Vaporator | DN25 |
| Top inlet pipe | DN40 |
| Bottom inlet/outlet pipe | DN40 |
| Reflux tube | DN40 |
| Liquid level gas phase tube | DN10 |
| Liquid level liquid phase tube | DN10 |
| Monitoring tube | DN10 |
| Overall Size(Frame)/L*W*H/mm | 6058*2438*2591 |
| ISO-cornercastings | 20'x8'x8'6" ISO dimensions |
